SCE-24K2410SSST | S.S. Sanitary Sloping Top Enclosure | Saginaw
Documents and manuals
Saginaw SCE-24K2410SSST Documents
Overview
Details for SCE-24K2410SSST

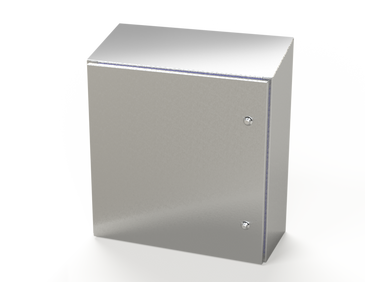

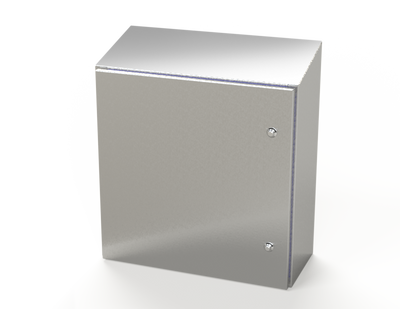

S.S. Sanitary Sloping Top Enclosure
Construction
- 0.075 In. stainless steel Type 304
- Seams continuously welded and ground smooth
- 15 degree sloped top
- Internal swing out hinges
- Doors open 110 degree
- Stainless sanitary quarter turn latches with FDA - Grade silicone gasket
- Pour in place oil and water resistant inner gasket
- FDA - Grade silicone outer gasket
- Provision for mounting optional panels
- Mounting holes in back of enclosure for optional mounting stand-off or mounting options
- Ground stud on door and body
- DIN 40050-9, IP69K
- ANSI 3A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
Application
Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food and Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil and water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Industry Standards - (IS25)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
Specifications
| Item Number | SCE-24K2410SSST |
| Brand | Saginaw |
