SCE-24EL2012SSST | NEMA 3R, 12, 4, 4X | S.S. EL Sloping Top Enclosure, 24H x 20W x 12D | Saginaw

Saginaw | SCE-24EL2012SSST

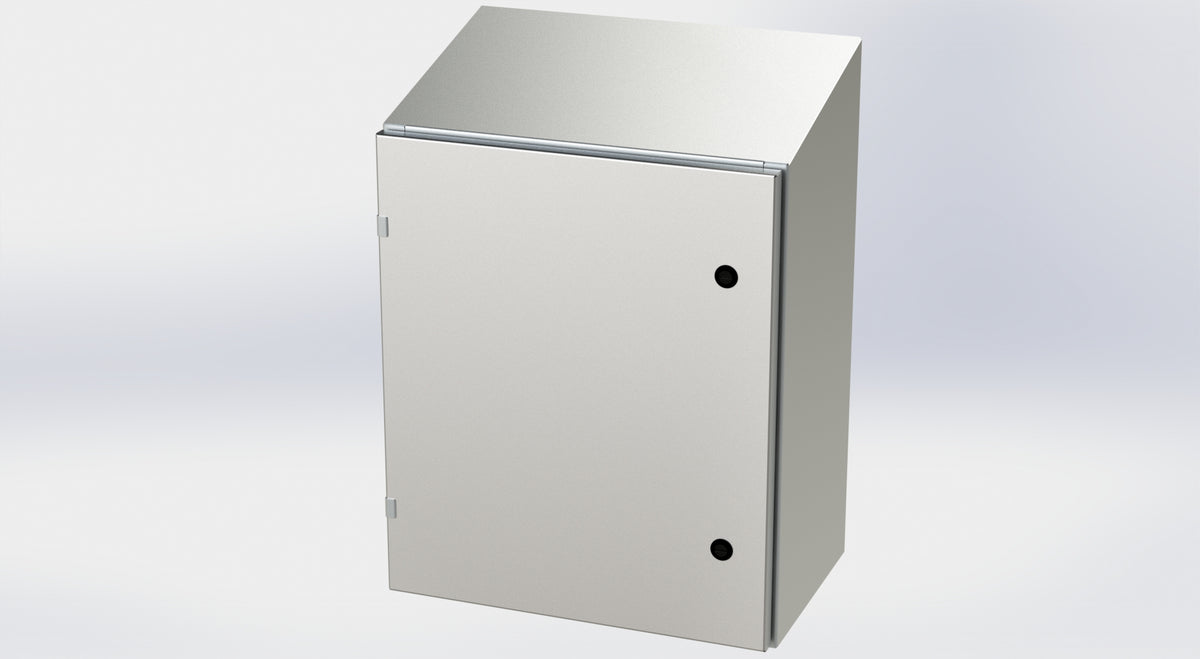

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-24EL2012SSST

Overview

Details for SCE-24EL2012SSST

NEMA 3R, 12, 4, 4X | S.S. EL Sloping Top Enclosure, 24H x 20W x 12D

Construction

  • 0.075 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • 15 degree sloping top.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Mounting holes in back of the enclosure for wall mounting.
  • Mounting hardware, sealing washers and hole plugs included.
  • Stainless Steel Concealed hinges.
  • Removable and interchangeable doors.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver (optional tamper resistant latches are available)
  • Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.
  • Provision for Lifting Lugs will be included on enclosures with Height 48 In. and with Depth 16 In. The Lifting Lug assembly will be included with the enclosure bolt pack.

Application

Designed to house electrical and electronic controls, instrumentation and components in indoor, outdoor and sanitary locations.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-24EL2012SSST
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 12
Enclosure Height (IN) 24
Enclosure Type S.S. EL Sloping Top Enclosure
Enclosure Width (IN) 20
