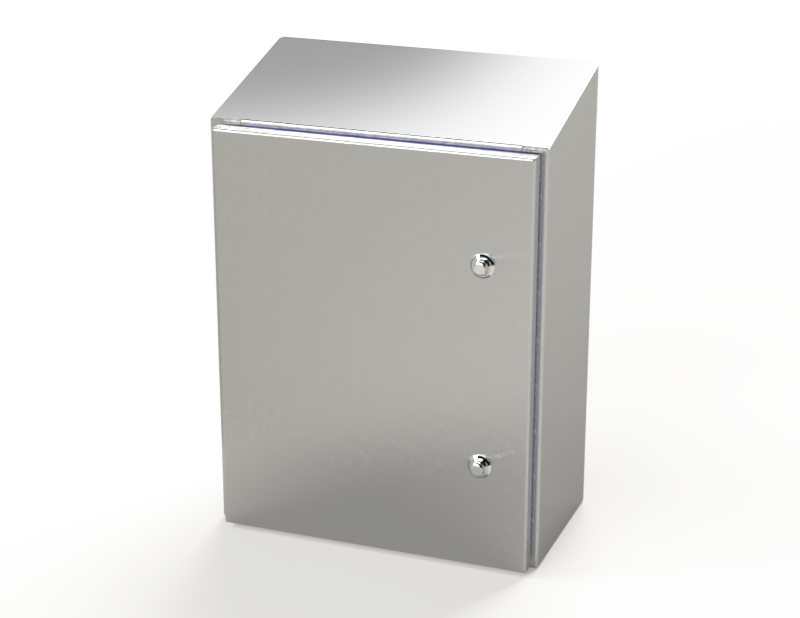

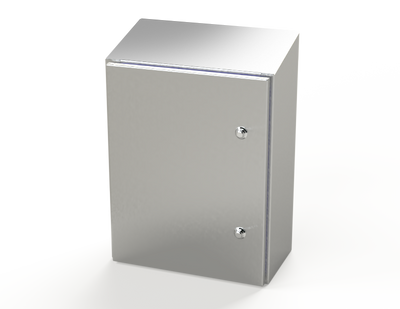

SCE-20K1608SSST | S.S. Sanitary Sloping Top Enclosure | Saginaw

Brand: SaginawSKU: SCE-20K1608SSST

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-20K1608SSST

Jump to: Overview & Specifications Reviews

Overview Details for SCE-20K1608SSST

Construction

0.075 In. stainless steel Type 304
Seams continuously welded and ground smooth
15 degree sloped top
Internal swing out hinges
Doors open 110 degree
Stainless sanitary quarter turn latches with FDA - Grade silicone gasket
Pour in place oil and water resistant inner gasket
FDA - Grade silicone outer gasket
Provision for mounting optional panels
Mounting holes in back of enclosure for optional mounting stand-off or mounting options
Ground stud on door and body
DIN 40050-9, IP69K
ANSI 3A 00-01 Sanitary Standard for General Requirements
NSF 169 Special Purpose Food Equipment and Devices

Application

Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food and Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil and water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

# 4 Brushed finish 25-35 RA suitable for medical and food industry.

Industry Standards - (IS25)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 69
