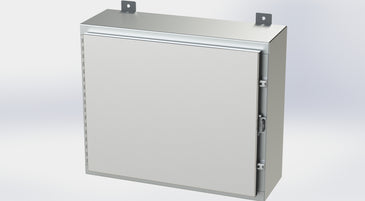

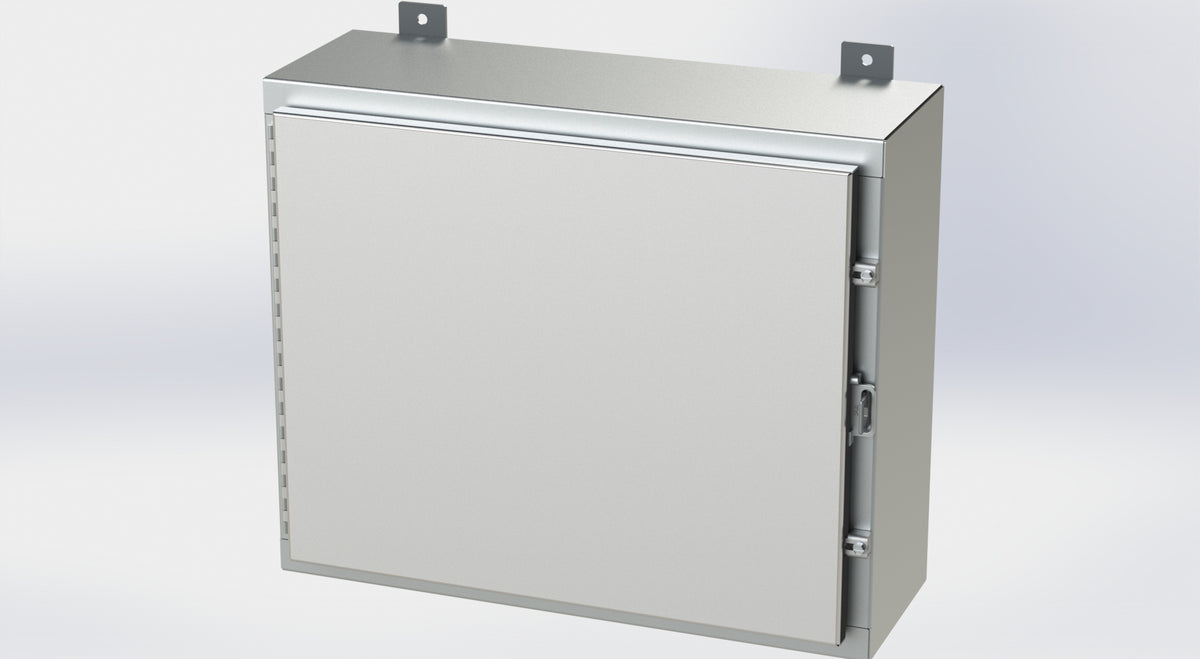

SCE-20H2408SSLP | NEMA 3R, 12, 4, 4X | Nema 4X LP Enclosure, 20H x 24W x 8D | Saginaw

Brand: SaginawSKU: SCE-20H2408SSLP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-20H2408SSLP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-20H2408SSLP

Construction

0.075 In. stainless steel Type 304.
Continuously welded seams ground smooth.
Flange trough collar around all sides of door opening.
Oil-resistant door gasket.
Collar studs provided for mounting optional subpanels.
Hasp and staple for padlocking.
Stainless steel continuous hinge.
Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
Ground stud on door.
Stainless steel clamps on three sides door when greater than 30 inch wide.
Mounting provision top and bottom of back.

Application

Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor applicationS a drip shield is recommended. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Provision for Lifting Lugs on enclosures when Height 48" and Depth 16". The Lifting Lug assembly will be included with the enclosure bolt pack.

Specifications

Item Number	SCE-20H2408SSLP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	8
Enclosure Height (IN)	20
Enclosure Type	Nema 4X LP Enclosure
Enclosure Width (IN)	24
