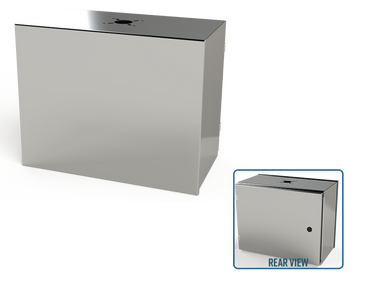

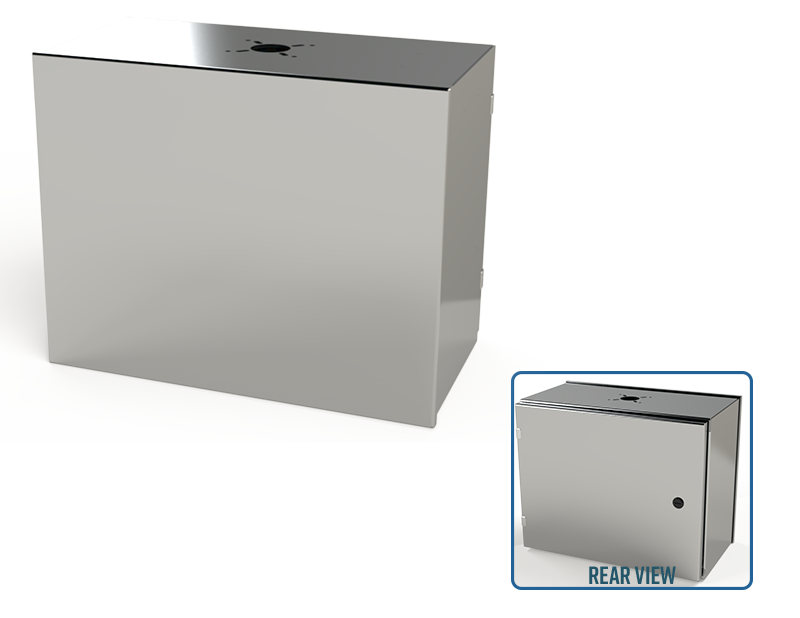

SCE-16HMI2010SSLP | NEMA 3R, 12, 4, 4X | S.S. HMI Enclosure, 16H x 20W x 10D | Saginaw

Brand: SaginawSKU: SCE-16HMI2010SSLP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-16HMI2010SSLP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-16HMI2010SSLP

Construction

0.075 In. stainless steel type 304.
Seams continously welded and ground smooth.
Reinforced with mounting provisions for suspension or pedestal mounting.
Concealed hinge access door with provisions for sub-panel.
Removable front cover for easy installation of cutouts, HMI and components.
Pour in place oil and water resistant gasket
Black quarter turn latches.
Latches are opened or closed with a screwdriver.
Ground studs on door and body.

Application

Designed to house Human-Machine Interfaces (HMI) and electrical and electronic controls, instruments and components. Provides protection from dust, oil and water.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. See the Special Instructions on the Industry Standards page in the Technical Information Section.

Specifications

Item Number	SCE-16HMI2010SSLP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	10
Enclosure Height (IN)	16
Enclosure Type	S.S. HMI Enclosure
Enclosure Width (IN)	20
