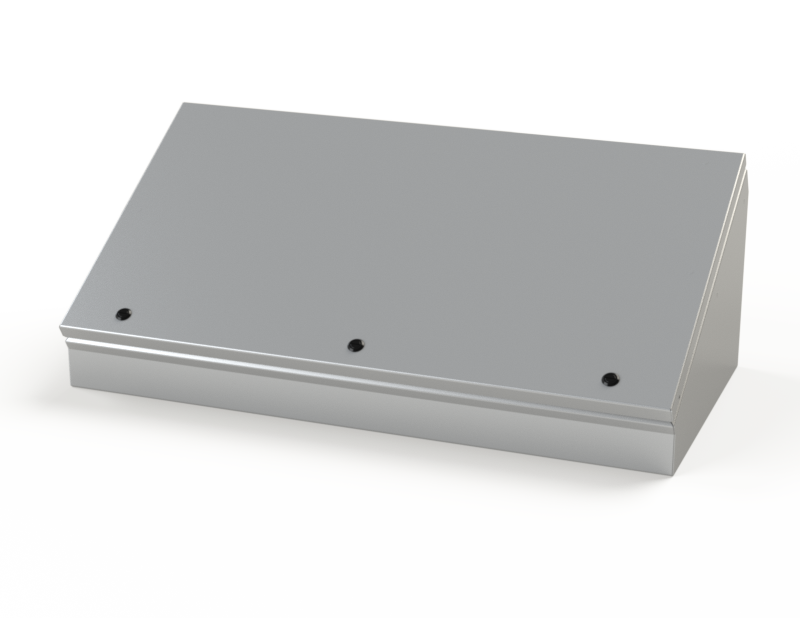

SCE-16C30ELJ | NEMA 3R, 12, 4 | Consolet, ELJ, 16H x 30W x 11D | Saginaw

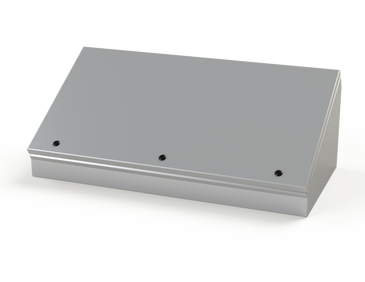

Saginaw | SCE-16C30ELJ
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-16C30ELJ

Overview

Details for SCE-16C30ELJ

NEMA 3R, 12, 4 | Consolet, ELJ, 16H x 30W x 11D

Construction

  • 0.063 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Removable ELJ hinges.
  • Pour in place oil and water resistant gasket
  • 10-32 Standoffs provided for mounting optional panels.
  • Cable door stops included on SCE-12C**, SCE-16C** and SCE-20C**
  • Black mini quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Ground stud on door and body.
  • Mounting holes in back.

Application

Designed to house electrical and electronic controls, instruments, and components. Provides protection from dust, dirt, oil and water. Consolets can be mounted on either of two sides to give a control surface inclined 30 degrees or 60 degrees. Can be mounted on desks, machines, or pedestals (not included).

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-16C30ELJ
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 11
Enclosure Height (IN) 16
Enclosure Type Consolet
Enclosure Width (IN) 30
