SCE-1614ELJW | NEMA 3R, 12, 4 | ELJ Enclosure W/Viewing Window, 16H x 14W x 6D | Saginaw

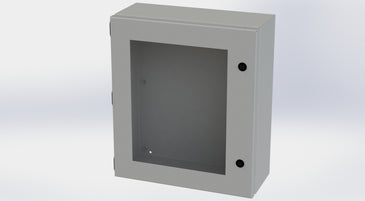

Saginaw | SCE-1614ELJW
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-1614ELJW

Overview

Details for SCE-1614ELJW

NEMA 3R, 12, 4 | ELJ Enclosure W/Viewing Window, 16H x 14W x 6D

Construction

  • 0.063 in. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil and water resistant gasket
  • 10-32 Standoffs provided for mounting optional panels.
  • Removable hinges.
  • Doors open 180 degrees.
  • Black mini quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Sealing washers and hole plugs included.
  • Ground stud on door and body.
  • Mounting feet included.

Application

Designed to house electrical controls, instruments and components that require unrestricted viewing of the gauges or controls in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

  • NEMA Type 3R, 4, 12 and Type 13
  • UL Listed Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • IEC 60529
  • IP 66

Notes

Recommend use as Type 3R rating in full outdoor exposure and extreme weather environments.

For more details see Design Considerations When Specifying Your Enclosure on our website.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-1614ELJW
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 6
Enclosure Height (IN) 16
Enclosure Type ELJ Enclosure W/Viewing Window
Enclosure Width (IN) 14
