Overview
Details for SCE-15KJ1408SSST

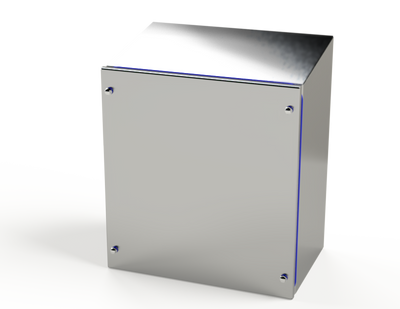

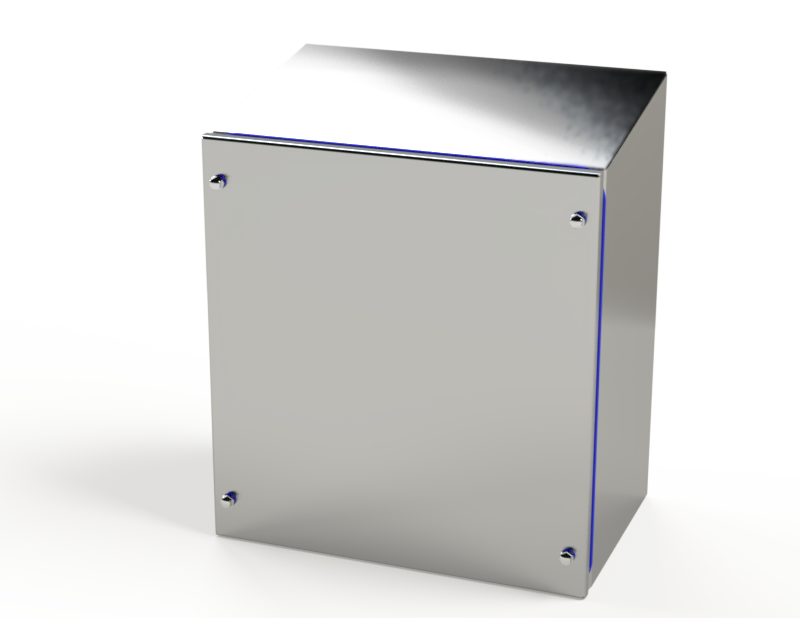

S.S. Sanitary Sloping Top Junction Enclosure
Construction
- 0.063 In. stainless steel Type 304
- Seams continuously welded and ground smooth
- 10 degree sloped top
- Sanitary fasteners with FDA - Grade silicone gasket
- Pour in place oil and water resistant gasket
- FDA - Grade silicone gasket
- Provision for mounting optional panels
- Ground stud on door and body
- Solid back with no mounting holes makes it easy to add weld mounting stand-off
- DIN 40050-9 IP69K
- ANSI 3-A 00-01 Sanitary Standard for General Requirements
- NSF 169 Special Purpose Food Equipment and Devices
Application
Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food and Beverage industry. Screw Cover enclosures provide maximal back panel space, and dual-gasket design that ensures its performance in extreme applications. Dual-gasket includes an inner pour-in-place oil and water-resistant gasket as well as an easily replaceable outer gasket that is a FDA-grade silicone that helps resist growth and chemical absorption.
For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
# 4 Brushed finish 25-35 RA suitable for medical and food industry.
Industry Standards - (IS25)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 69
Specifications
| Item Number | SCE-15KJ1408SSST |
| Brand | Saginaw |
