SCE-14HMI1810LP | NEMA 3R, 12, 4 | HMI Enclosure, 14H x 18W x 10D | Saginaw

Brand: SaginawSKU: SCE-14HMI1810LP

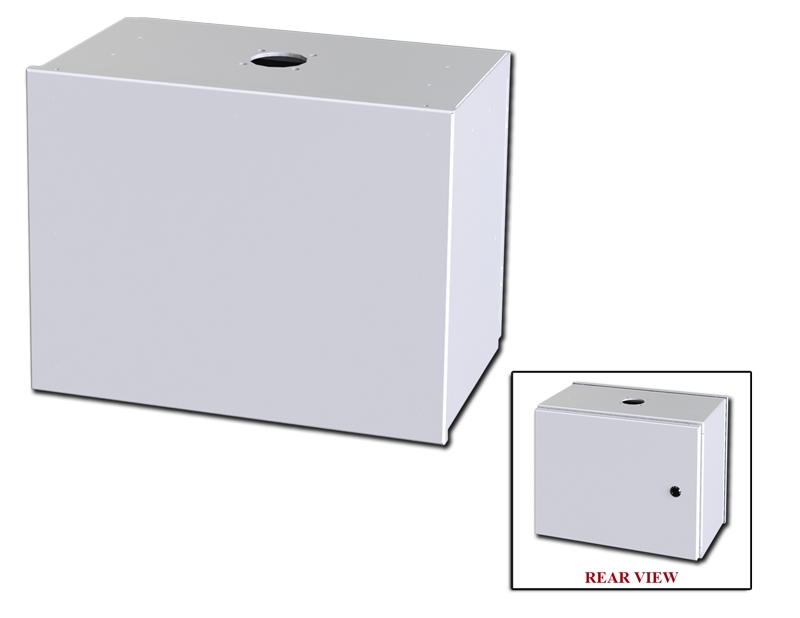

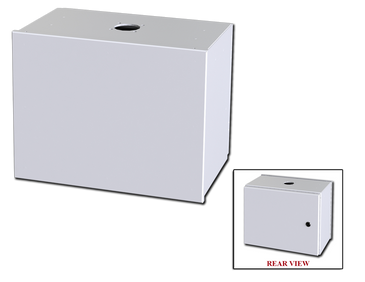

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-14HMI1810LP

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-14HMI1810LP

Construction

0.075 In. carbon steel.
Seams continously welded and ground smooth.
Reinforced with mounting provisions for suspension or pedestal mounting.
Concealed hinge access door with provisions for sub-panel.
Removable front cover for easy installation of cutouts, HMI and components.
Pour in place oil and water resistant gasket
Black quarter turn latches.
Latches are opened and closed with a screwdriver.
Ground stud on door and body.

Application

Designed to house Human-Machine Interfaces (HMI) and electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

RAL 7035 gray powder coated inside and out. Optional sub-panels powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. See the Special Instructions on the Industry Standards page in the Technical Information Section.

Specifications

Item Number	SCE-14HMI1810LP
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	10
Enclosure Height (IN)	14
Enclosure Type	HMI Enclosure
Enclosure Width (IN)	18
