SCE-1448BD | NEMA 3R, 12 | Body, Console (Series 14), 50H x 48W x 23D | Saginaw

Brand: SaginawSKU: SCE-1448BD

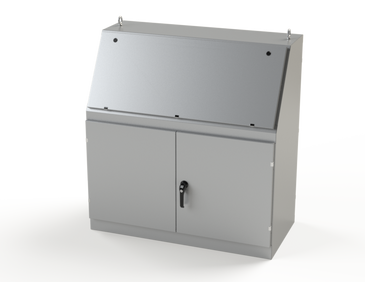

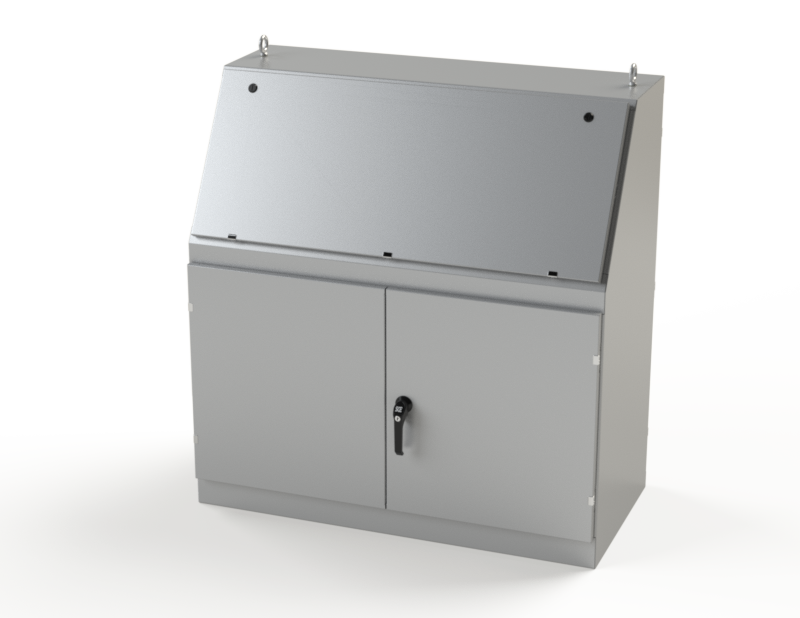

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-1448BD

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-1448BD

Construction

0.104 In. carbon steel.
Sloping control panel attached with concealed hinge on bottom edge. Door opens to 90 degrees.
Black zinc die cast keylocking/padlocking handles on front and rear doors.
3-point latching mechanism.
Seams continuously welded and ground smooth.
Pour in place oil and water resistant gasket
Optional equipment mount to horizontal channels welded to sides.
Optional writing desk and top section available.
Interior print pocket.
Removable eyebolts in console body.
Ground stud on door.
Subpanels available in half(P2) and full(P3)
Dual access enclosure. Offering front and rear entry doors.

Application

Designed for electronic controls and instruments. Equipment can be mounted on the sloping control panel door. Interior components mount to stationary panels. Heavy duty construction provides protection from dirt, oil, dust, and water.

Finish

ANSI-61 gray powder coat inside and out. Optional top sections are ANSI-61 gray powder coat inside and out. Optional panels are powder coated white.

Industry Standards - (IS3)

NEMA Type 3R, 12 and Type 13
UL Listed Type 3R and 12
CSA Type 3R and 12
IEC 60529
IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-1448BD
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
Enclosure Depth (IN)	23
Enclosure Height (IN)	50
Enclosure Type	Body
Enclosure Width (IN)	48
