Documents: SCE-1412ELJLG

FREIGHT DAMAGE POLICY CAD Package Enviroline Junction Enclosure Sub-Plate Layout & Grounding for 10-32 More Info

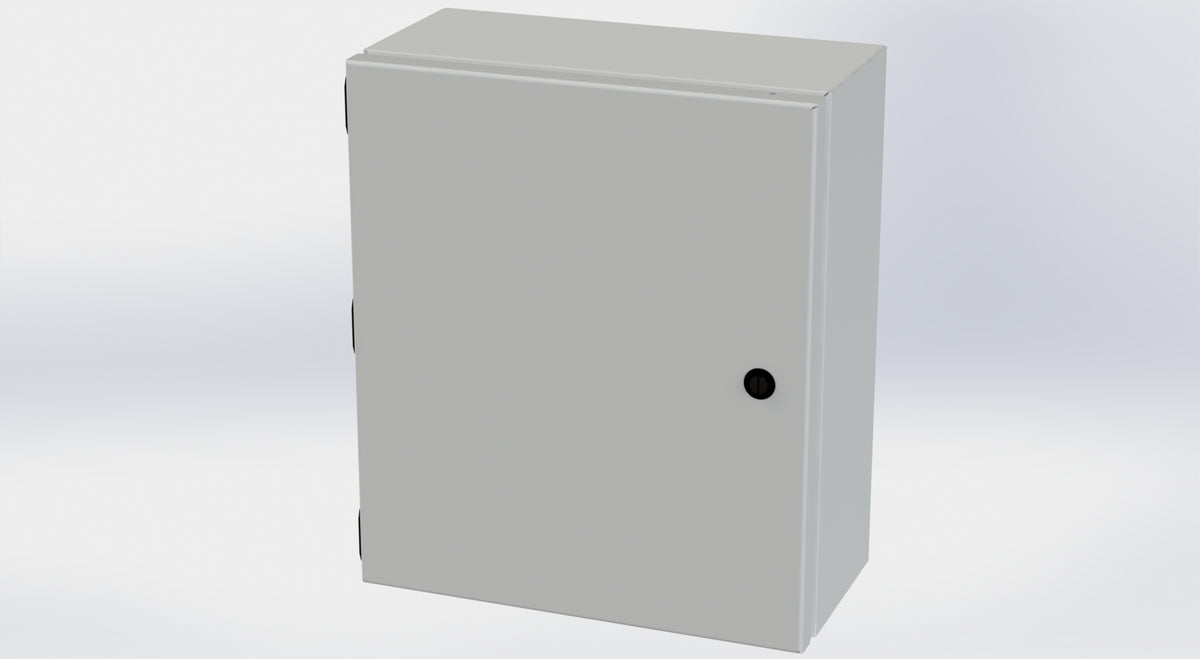

SCE-1412ELJLG | NEMA 3R, 12, 4 | ELJ Enclosure, 14H x 12W x 6D | Saginaw

Brand: SaginawSKU: SCE-1412ELJLG

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-1412ELJLG

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-1412ELJLG

Construction

0.063 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides or door opening.
Pour in place oil and water resistant gasket
10-32 Standoffs provided for mounting optional panels.
Removable hinges.
Doors open 180 degrees.
Black mini quarter turn latches.
Latches are opened or closed with a screwdriver.
Sealing washers and hole plugs included.
Ground stud on door and body.
Mounting feet included.

Application

Designed to house electrical controls, instruments and components in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

RAL 7035 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-1412ELJLG
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	6
Enclosure Height (IN)	14
Enclosure Type	ELJ Enclosure
Enclosure Width (IN)	12
