SCE-1412CHNFSS | NEMA 3R, 12, 4, 4X | S.S. CHNF Enclosure, 14H x 12W x 6D | Saginaw

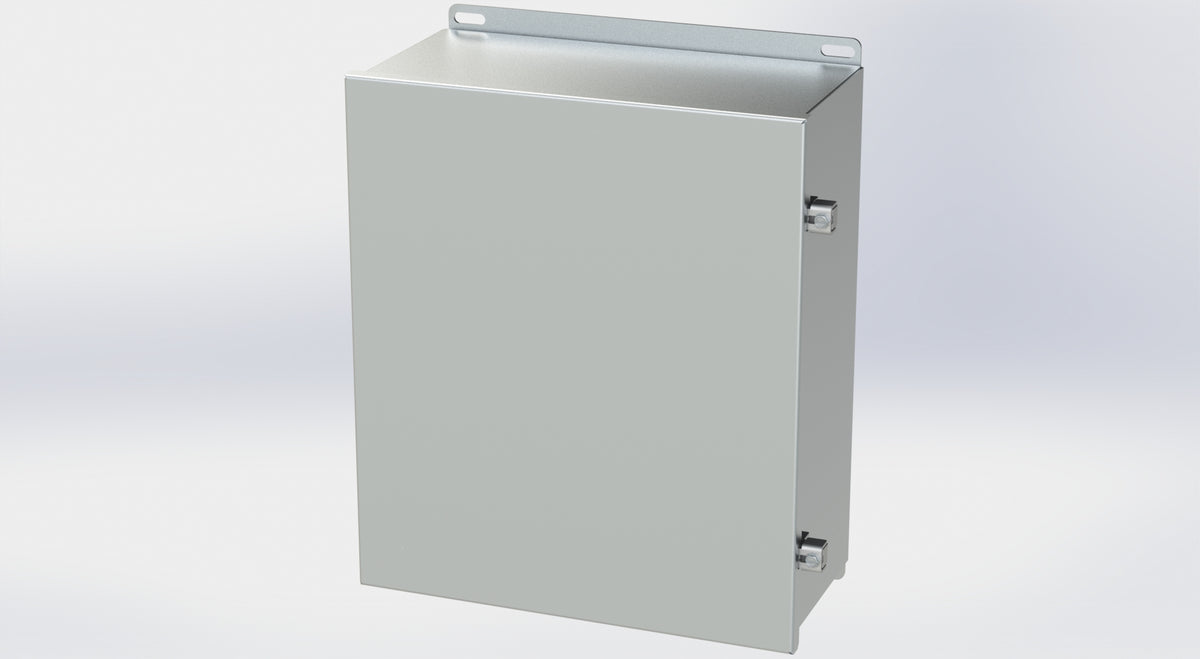

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-1412CHNFSS
Documents and manuals
Overview
Details for SCE-1412CHNFSS
NEMA 3R, 12, 4, 4X | S.S. CHNF Enclosure, 14H x 12W x 6D
Construction
- 0.063 In. stainless steel Type 304.
- Seams continuously welded and ground smooth.
- Pour in place oil and water resistant gasket
- Ground stud on door.
- Stainless steel continuous hinge.
- 10-32 Standoffs provided for mounting optional panels.
- Welded mounting provision top and bottom of back.
Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. For use in wet and hosed down areas and in corrosive atmospheres.
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Specifications
Item Number | SCE-1412CHNFSS |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 3R |
1 Enclosure Rating | NEMA 4 |
1 Enclosure Rating | NEMA 4X |
Enclosure Depth (IN) | 6 |
Enclosure Height (IN) | 14 |
Enclosure Type | S.S. CHNF Enclosure |
Enclosure Width (IN) | 12 |
