SCE-12SPBAI | NEMA 12, 4 | PBAI Enclosure, 12H x 9W x 9D | Saginaw

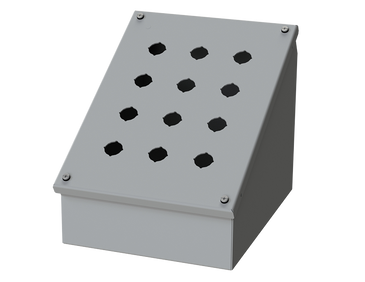

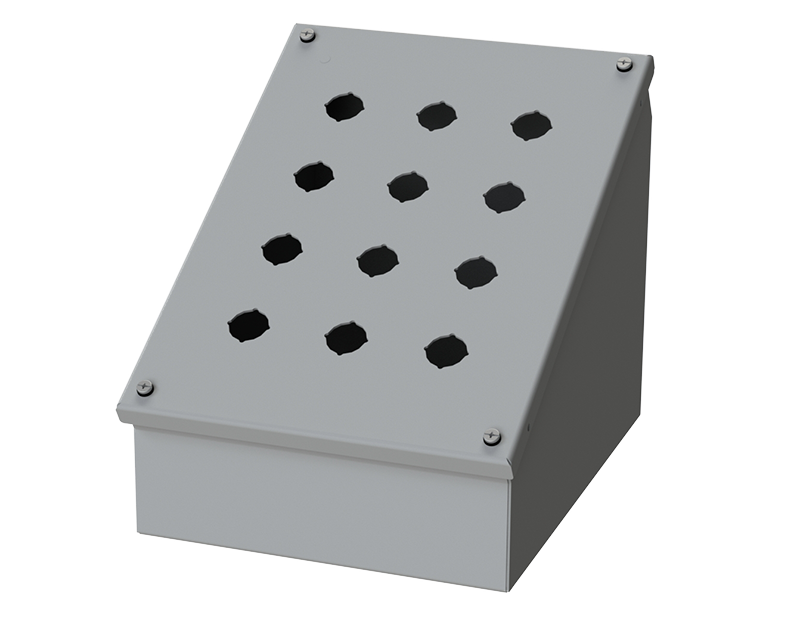

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-12SPBAI

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Saginaw SCE-12SPBAI Documents

FREIGHT DAMAGE POLICY CAD Package Mounting Foot Kit for PBA. PBAI Enclosures Pushbutton Enclosures Sub-Plate Layout & Grounding for 10-32 More Info

Overview

Details for SCE-12SPBAI

NEMA 12, 4 | PBAI Enclosure, 12H x 9W x 9D

Construction

0.063 In. carbon steel.
Continuously welded seams.
Captivated cover screws thread into sealed wells.
4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm).
Immediate removal of cover is permitted.
Pour in place oil and water resistant gasket
Mounting feet included.

Application

Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.

Finish

ANSI-61 gray powder coating inside and out.
Optional sub-panels are powder coated white.

Industry Standards - (IS2)

NEMA Type 4, 12 and Type 13
UL Listed Type 4 and 12
CSA Type 4 and 12
IEC 60529
IP 66

Specifications

Item Number	SCE-12SPBAI
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	9
Enclosure Height (IN)	12
Enclosure Type	PBAI Enclosure
Enclosure Width (IN)	9
