SCE-12PBX | NEMA 12, 4 | PBX Enclosure, 12H x 9W x 5D | Saginaw

Brand: SaginawSKU: SCE-12PBX
Saginaw | SCE-12PBX

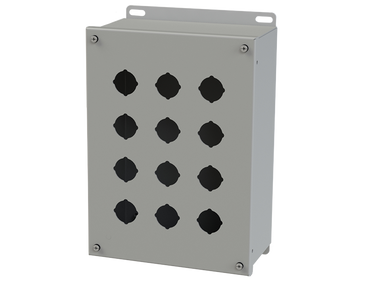

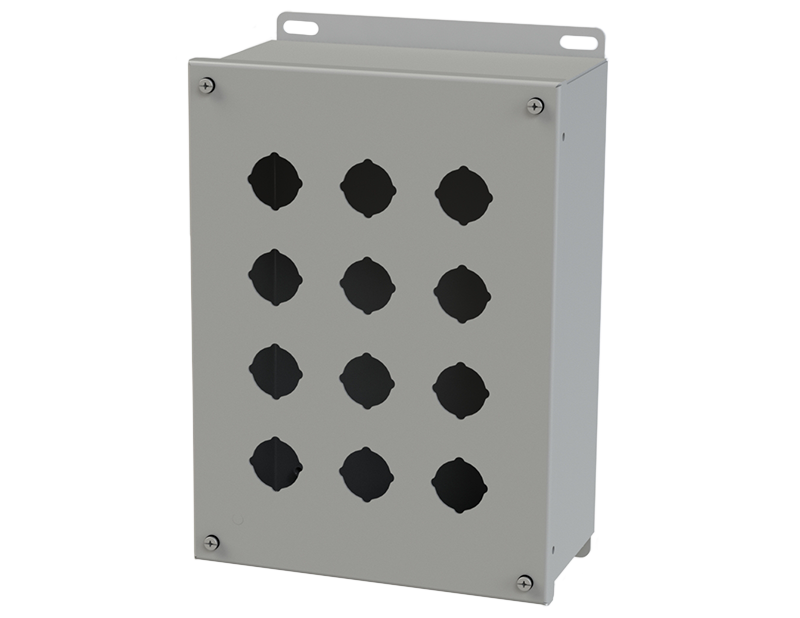

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-12PBX
Overview & Specifications ReviewsParts & Accessories

Overview Details for SCE-12PBX

Construction

  • 0.063 In. carbon steel
  • Continuously welded seams
  • Captivated cover screws thread into sealed wells
  • 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
  • Immediate removal of cover is still permitted
  • Pour in place oil and water resistant gasket
  • Welded mounting provision top and bottom of back

Application

Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.

Finish

ANSI-61 gray powder coating inside and out.

Industry Standards - (IS2)

  • NEMA Type 4, 12 and Type 13
  • UL Listed Type 4 and 12
  • CSA Type 4 and 12
  • IEC 60529
  • IP 66

Notes

Add ''I'' to catalog number to receive with 22.5mm hole diameter

Specifications

Item Number SCE-12PBX
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 4
Enclosure Depth (IN) 5
Enclosure Height (IN) 12
Enclosure Type PBX Enclosure
Enclosure Width (IN) 9
