SCE-12HMI1610SSLP | NEMA 3R, 12, 4, 4X | S.S. HMI Enclosure, 12H x 16W x 10D | Saginaw

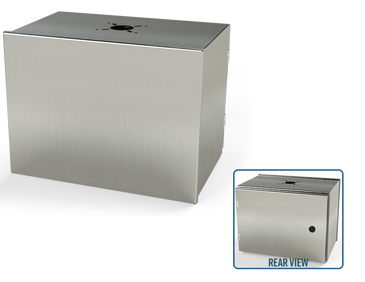

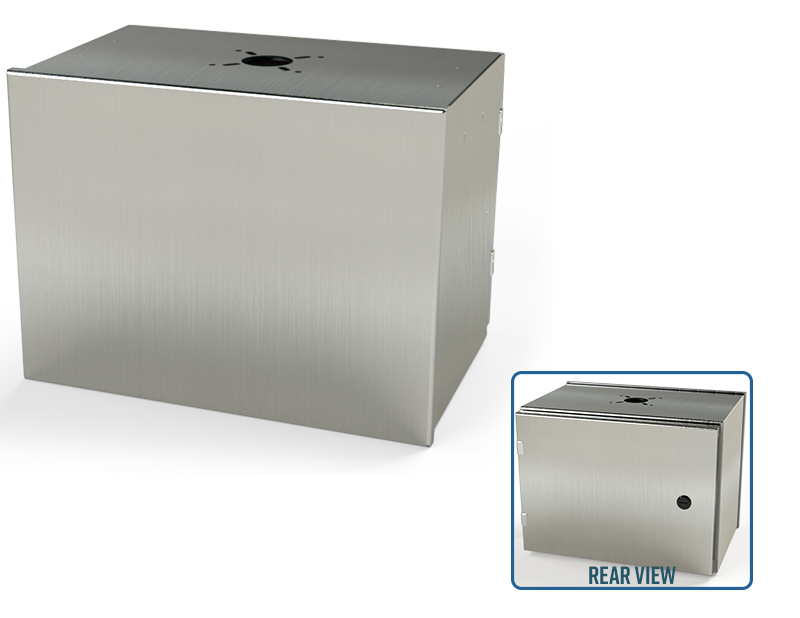

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-12HMI1610SSLP
Documents and manuals
Saginaw SCE-12HMI1610SSLP Documents
Overview
Details for SCE-12HMI1610SSLP
NEMA 3R, 12, 4, 4X | S.S. HMI Enclosure, 12H x 16W x 10D
Construction
- 0.075 In. stainless steel type 304.
- Seams continously welded and ground smooth.
- Reinforced with mounting provisions for suspension or pedestal mounting.
- Concealed hinge access door with provisions for sub-panel.
- Removable front cover for easy installation of cutouts, HMI and components.
- Pour in place oil and water resistant gasket
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Ground studs on door and body.
Application
Designed to house Human-Machine Interfaces (HMI) and electrical and electronic controls, instruments and components. Provides protection from dust, oil and water.
Finish
#4 brushed finish on all exterior surfaces. Optional sub-panels powder coated white.
Industry Standards - (IS6)
- NEMA Type 3R, 4, 4X, 12 and Type 13
- UL Listed Type 3R, 4, 4X and 12
- CSA Type 4, 4X and 12
- IEC 60529
- IP 66
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. See the Special Instructions on the Industry Standards page in the Technical Information Section.
Specifications
Item Number | SCE-12HMI1610SSLP |
Brand | Saginaw |
1 Enclosure Rating | NEMA 12 |
1 Enclosure Rating | NEMA 3R |
1 Enclosure Rating | NEMA 4 |
1 Enclosure Rating | NEMA 4X |
Enclosure Depth (IN) | 10 |
Enclosure Height (IN) | 12 |
Enclosure Type | S.S. HMI Enclosure |
Enclosure Width (IN) | 16 |
