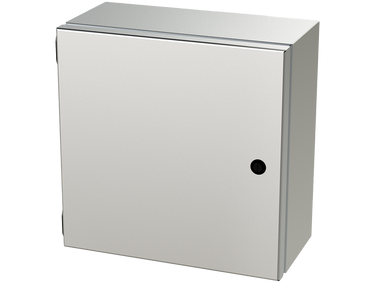

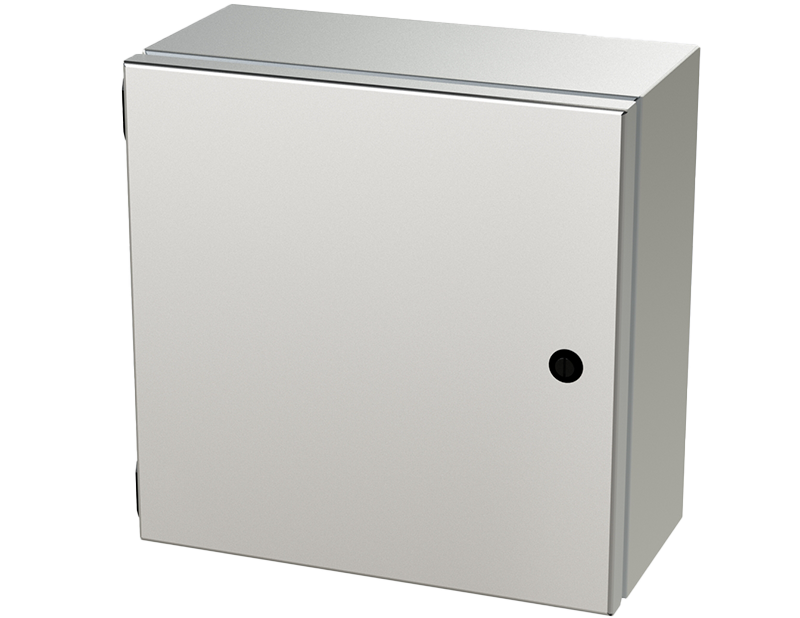

SCE-1212ELJSS6 | NEMA 3R, 12, 4, 4X | S.S. ELJ Enclosure, 12H x 12W x 6D | Saginaw

Brand: SaginawSKU: SCE-1212ELJSS6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-1212ELJSS6

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-1212ELJSS6

Construction

0.063 In. stainless steel Type 316/316L.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
10-32 Standoffs provided for mounting optional panels.
Removable hinges.
Doors open 180 degrees.
Black mini quarter turn latches.
Latches are opened or closed with a screwdriver.
Sealing washers and hole plugs included.
Ground stud on door and body.
Mounting feet included.
Optional latches available.

Application

Designed to house electrical controls, instruments and components in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water. For outdoor applications a drip shield is recommended.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-1212ELJSS6
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	6
Enclosure Height (IN)	12
Enclosure Type	S.S. ELJ Enclosure
Enclosure Width (IN)	12
