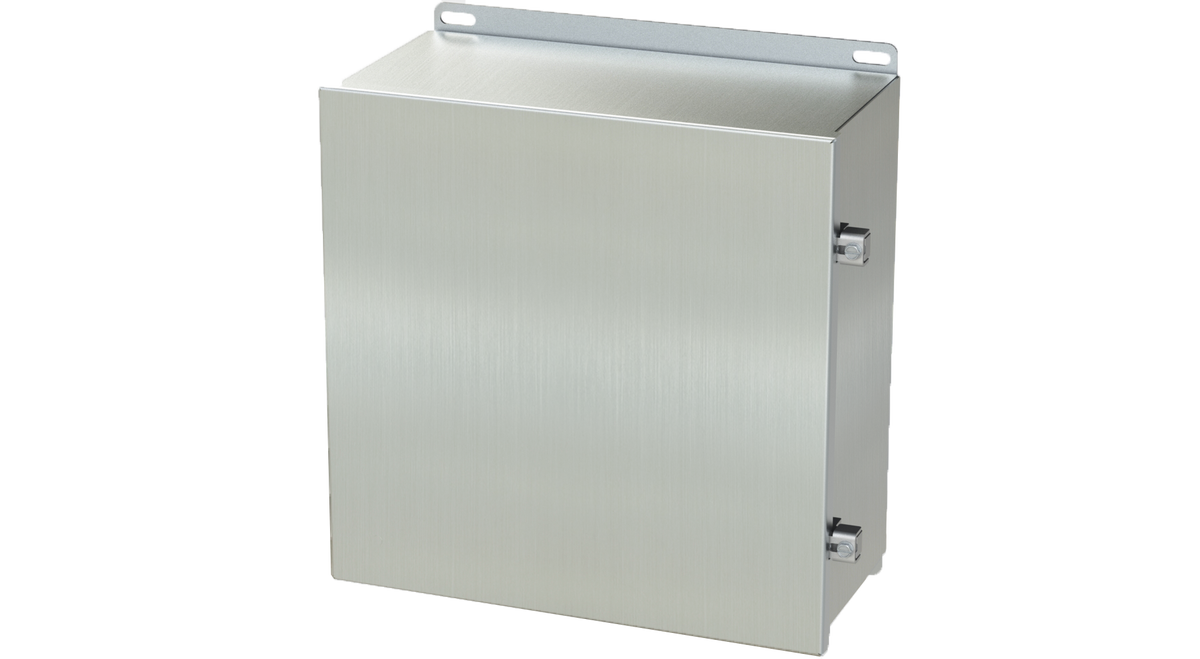

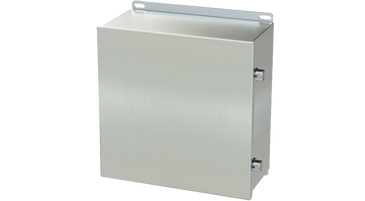

SCE-1212CHNFSS | NEMA 3R, 12, 4, 4X | S.S. CHNF Enclosure, 12H x 12W x 6D | Saginaw

Brand: SaginawSKU: SCE-1212CHNFSS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-1212CHNFSS

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-1212CHNFSS

Construction

0.063 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
Pour in place oil and water resistant gasket
Ground stud on door.
Stainless steel continuous hinge.
10-32 Standoffs provided for mounting optional panels.
Welded mounting provision top and bottom of back.

Application

Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. For use in wet and hosed down areas and in corrosive atmospheres.

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-1212CHNFSS
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	6
Enclosure Height (IN)	12
Enclosure Type	S.S. CHNF Enclosure
Enclosure Width (IN)	12
