Documents: SCE-1008FG

FREIGHT DAMAGE POLICY More Info

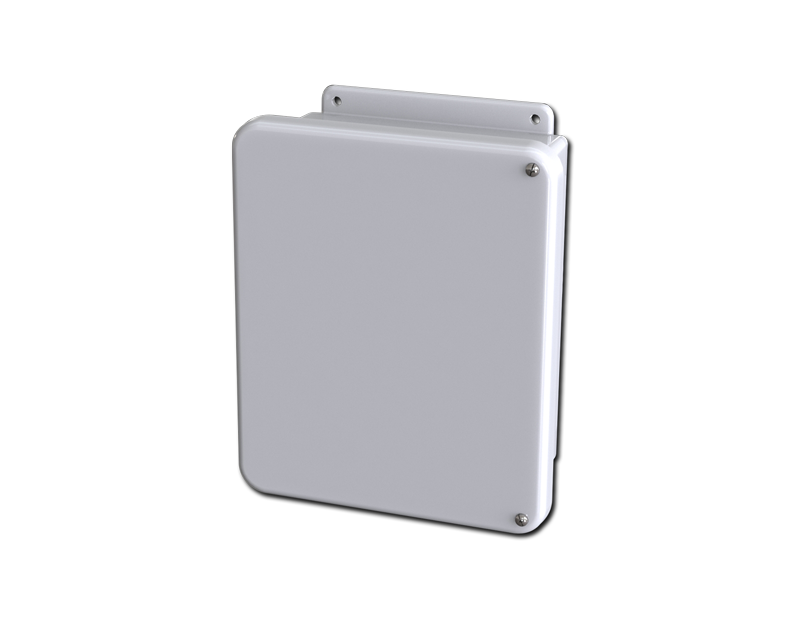

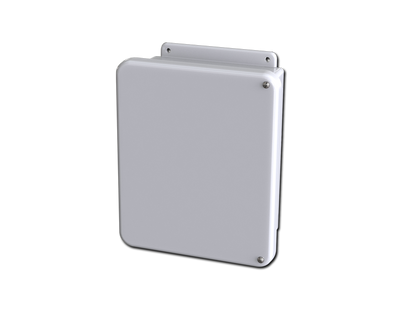

SCE-1008FG | NEMA 12, 4, 4X | Fiberglass Enclosure (Hinged Screw Cover), 11H x 9W x 4D | Saginaw

Brand: SaginawSKU: SCE-1008FG

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-1008FG

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-1008FG

Construction

Fiberglass reinforced compression molded polyester.
Continuous memory retaining gasket.
Mounting strips molded in.
Captive screw fasteners.
Integral panel mounting inserts.
Stainless steel continuous hinge.

Application

Designed for indoor or outdoor use to house electronic controls, instruments and components in areas that may be regularly hosed down, are in very wet conditions, or are exposed to corrosive agent. Provides protection from dust, dirt, oil, and water.

Finish

Light gray fiberglass. Optional sub-panels are marine grade aluminum.

Industry Standards - (IS5)

NEMA Type 4, 4X, 12 and Type 13
UL Listed Type 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

UL File E64358

Specifications

Item Number	SCE-1008FG
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	4
Enclosure Height (IN)	11
Enclosure Type	Fiberglass Enclosure (Hinged Screw Cover)
Enclosure Width (IN)	9
