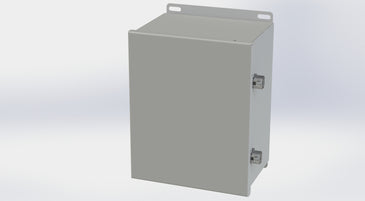

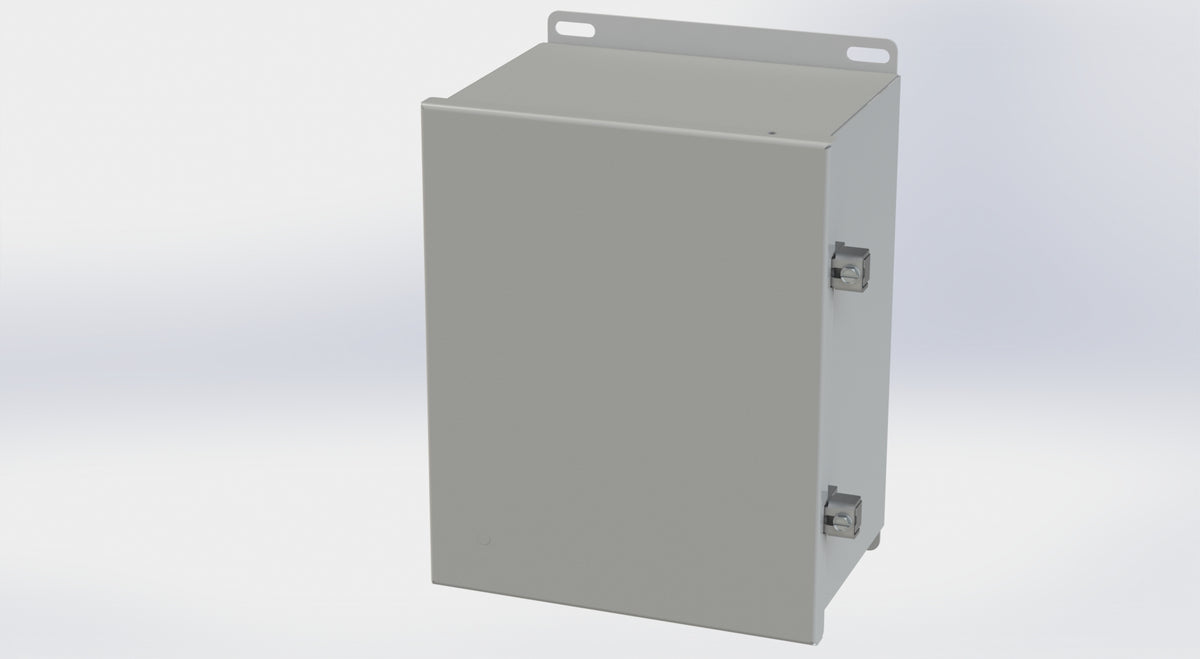

SCE-10086CHNF | NEMA 3R, 12, 4 | CHNF Enclosure, 10H x 8W x 6D | Saginaw

Brand: SaginawSKU: SCE-10086CHNF

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-10086CHNF

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-10086CHNF

Construction

0.063 In. carbon steel.
Seams continuously welded and ground smooth, no holes or knockouts.
Continuous hinges with stainless steel hinge pins.
External screw clamps are quick and easy to operate.
Pour in place oil and water resistant gasket.
10-32 Standoffs provided for mounting optional panels.
Ground stud on door and body.
Welded mounting provision top and bottom of back.

Application

Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, dirt, oil and water.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Part numbers containing an "S" are hinged on the short side.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-10086CHNF
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	6
Enclosure Height (IN)	10
Enclosure Type	CHNF Enclosure
Enclosure Width (IN)	8
