P-P11R2-K3RF0-U450 | Port, Programming | 3.5 (H) x 5.1 (W) x 1.65 (D) | Saginaw

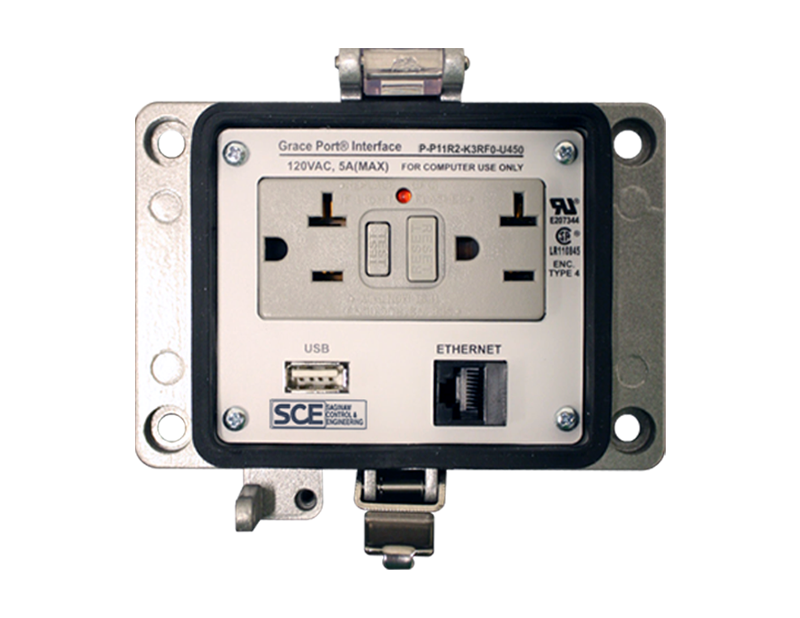

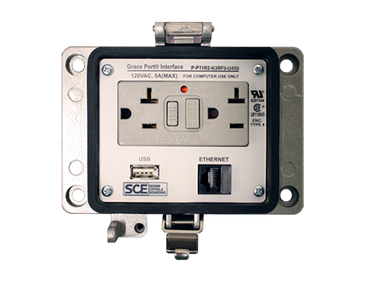

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P-P11R2-K3RF0-U450
Documents and manuals
Saginaw P-P11R2-K3RF0-U450 Documents
Overview
Details for P-P11R2-K3RF0-U450
Port, Programming | 3.5 (H) x 5.1 (W) x 1.65 (D)
Construction
- Transparent polycarbonate sealed cover.
- Quick release padlocking latch.
- Available with Ethernet, USB, Control Net, Serial or Device Net data interface ports.
- Programming ports with Duplex are GFCI Ground fault circuit interrupters with exclusive three outlet design, GFCI Duplex outside the enclosure with GFCI Simplex inside.
- No GFCI on Programming ports with simplex only.
Application
This product line is designed to help increase your compliance with NFPA 70E and reduce the risk of personal exposure of arc flash by reducing the need to access the enclosure, by bringing utility outlets and data interface ports outside the enclosures.
Finish
Powder coated Light Gray.
Industry Standards - (IS9)
- UL Component Recognized
- CSA Component Recognized
Notes
UL Recognized E207344
NFPA 70E Compliant
Ports with "foreign" Oulets are CE Compliant
*-**-*2***-U450 = UL Type 4X
*-**-*3***-U450 = UL Type 4
*-**-*4***-U450 = UL Type 12
Ref.
P-R2-K2RF3-U450 = UL Type 4X
P-Q9-K3RF3-U450 = UL Type 4
P-Q9-K4RF4-U450 = UL Type 12
Specifications
Item Number | P-P11R2-K3RF0-U450 |
Brand | Saginaw |
Accessory | Port; Programming |
Depth (IN) | 1.65 |
Height (IN) | 3.5 |
UL Rating | Recognized |
Width (IN) | 5.1 |
