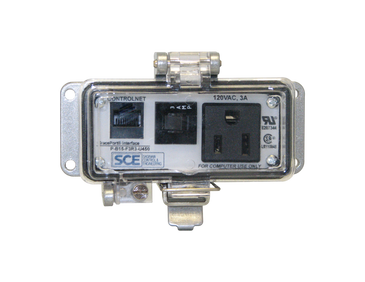

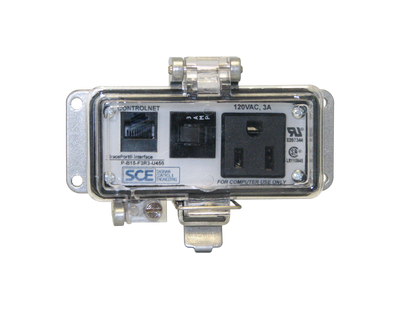

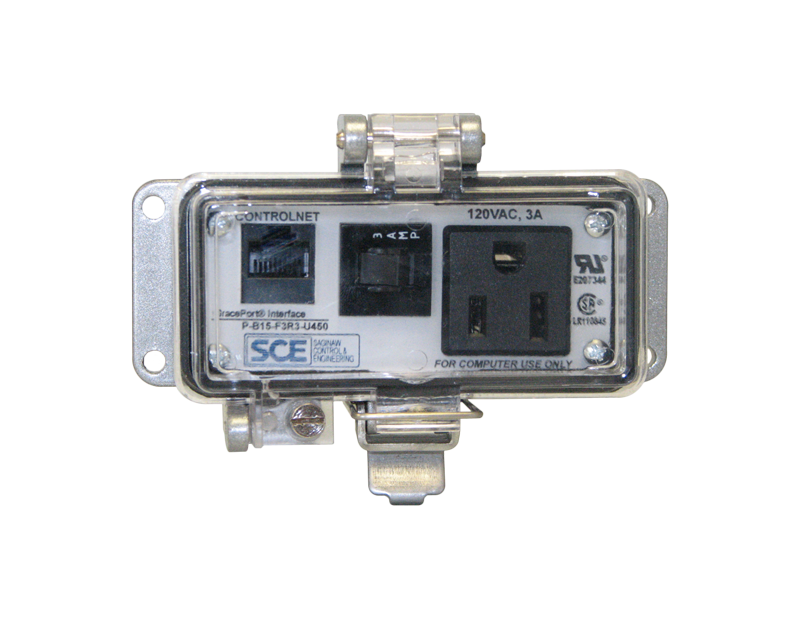

P-B15-F3R3-U450 | NEMA Recognized | Port, Programming, 4H x 2W x 2D | Saginaw

Brand: SaginawSKU: P-B15-F3R3-U450

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to P-B15-F3R3-U450

Jump to: Overview & Specifications Reviews

Overview Details for P-B15-F3R3-U450

Construction

Transparent polycarbonate sealed cover.
Quick release padlocking latch.
Available with Ethernet, USB, Control Net, Serial or Device Net data interface ports.
Programming ports with Duplex are GFCI Ground fault circuit interrupters with exclusive three outlet design, GFCI Duplex outside the enclosure with GFCI Simplex inside.
No GFCI on Programming ports with simplex only.

Application

This product line is designed to help increase your compliance with NFPA 70E and reduce the risk of personal exposure of arc flash by reducing the need to access the enclosure, by bringing utility outlets and data interface ports outside the enclosures.

Finish

Powder coated Light Gray.

Industry Standards - (IS9)

UL Component Recognized
CSA Component Recognized

Notes

UL Recognized E207344

NFPA 70E Compliant
Ports with "foreign" Oulets are CE Compliant

*-**-*2***-U450 = UL Type 4X
*-**-*3***-U450 = UL Type 4
*-**-*4***-U450 = UL Type 12
Ref.
P-R2-K2RF3-U450 = UL Type 4X
P-Q9-K3RF3-U450 = UL Type 4
P-Q9-K4RF4-U450 = UL Type 12

Specifications

Item Number	P-B15-F3R3-U450
Brand	Saginaw
1 Enclosure Rating	UL Recognized
Enclosure Depth (IN)	2
Enclosure Height (IN)	4
Enclosure Type	Port
Enclosure Width (IN)	2
