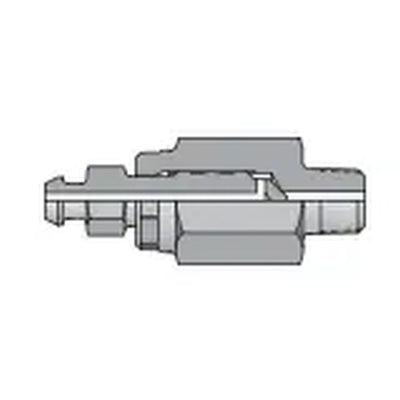

1/4 HPBA-S | PIPE - BLEED ADAPTER | Parker

Parker's Bleed Adapters are designed specifically for installation directly to O-ring Face Seal (ORFS) type fittings or into SAE or NPT manifolds and valves where bleeding is often required. Bleed adapters are especially beneficial in hydraulic system applications where elastomeric seals can be extruded and/or damaged during bleeding done by "cracking" a connection.

Markets:
• Construction
• Agriculture
• Mining
• Oil & Gas
• Transportation
• Alternative fuel

Features/Benefits:
• Uses standard automotive bleed screw design which is permanently crimped into body housing for blowout prevention.
• Easily bleed a hydraulic systems without “cracking,” protecting against the possible high force of larger size fittings or the potential for elastomeric seals extruding or becoming damaged.
• In-port options with SAE and NPT male studs and tube and hose connection options to male and female ORFS fittings.
• Available in steel in sizes 1 1/4” through 1 ½” with working pressures of up to 12,000 psi.

Applications:
• Hydraulic fluid handling connections
