STC0086YP1DT060S | 3 WAY Contoured Port Ball Valves | Contoured Port, NPT Female Brass Body & Nickel Plated Ball | D series low voltage Actuators | 35 in.lb | 24V | ON/OFF | Floating | Electronic Fail Safe | Neptronic

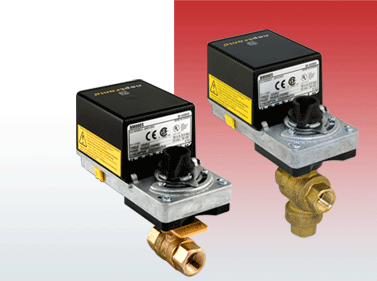

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STC0086YP1DT060S
Overview
Details for STC0086YP1DT060S
3 WAY Contoured Port Ball Valves | Contoured Port, NPT Female Brass Body & Nickel Plated Ball | D series low voltage Actuators | 35 in.lb | 24V | ON/OFF | Floating | Electronic Fail Safe
The Contoured Port Series are actuated Ball Valves that can provide digital or analog control of hot and chilled water systems containing up to 50% glycol. Each unit is comprised of a rotary actuator and linkage assembly coupled to a valve body that offers positive close off and low torque. The Contoured Port Ball, incorporates an integral permanently attached glass filled polymer to achieve a wide range of Cv’s by offering a variety of orifices. Valve sizes range from 1/2 inch to 2-1/2 inches with a CloseOff pressure of 100 PSIG. These low profile, compact units can be installed with ease in the often tight, restricted areas found in unit ventilators, fan coils, terminal reheat coils and larger air handlers.Specifications
Item Number | STC0086YP1DT060S |
Brand | Neptronic |
Control Input | Floating |
Control Valves Type | CCV Ball Valves |
CV/GPM | 8.6 |
End Switch | |
Spring Return | Electronic Fail-Safe |
Valve Size | 1"-3 WAY |
Voltage | 24V |
