GSA0013YB1AM060 | 2 WAY Globe Valves | NPT Female Brass Body & Trim | A & M Linear Actuators | 100 lb | 24V | ON/OFF | Floating | Modulating | Electronic Fail Safe | Neptronic

Brand: NeptronicSKU: GSA0013YB1AM060

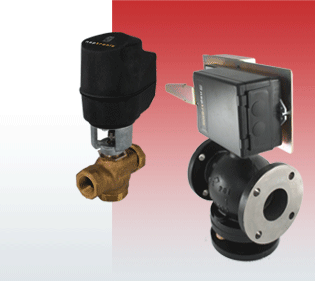

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GSA0013YB1AM060

Jump to: Overview & Specifications Reviews

Overview Details for GSA0013YB1AM060

The Linear actuated Globe Valves provide digital or analog control in 3 Way applications, for water or low pressure steam service. Each unit is comprised of a linear actuator that is directly coupled to the valve. The linear actuator delivers a maximum of 100 pounds or 450 Newtons force at rated voltage. The direction of stroke is reversible. Valve sizing ranges from 1/2 inch to 2 inches with a maximum close-off pressure of 250 PSIG. Valve specifications are for standard stock; data sheets for valves with different characteristics, such as 3 Way diverting, stainless steel seats and plugs or threaded or sweat fittings, are available upon request

Specifications

Item Number	GSA0013YB1AM060
Brand	Neptronic
Control Input	Modulating
Control Valves Type	Globe Valves
CV/GPM	1.3
End Switch
Spring Return	Electronic Fail-Safe
Valve Size	0.5"-2 WAY
Voltage	24V
