GSA0004YB1AT060 | 2 WAY Globe Valves | NPT Female Brass Body & Trim | A & M Linear Actuators | 100 lb | 24V | ON/OFF| Floating | Electronic Fail Safe | Neptronic

Brand: NeptronicSKU: GSA0004YB1AT060

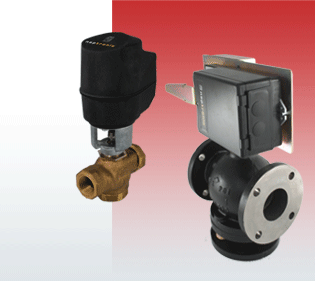

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GSA0004YB1AT060

Jump to: Overview & Specifications Reviews

Overview Details for GSA0004YB1AT060

Description

The Linear actuated Globe Valves provide digital or analog control in 2 Way applications, for water or low pressure steam service. Each unit is comprised of a linear actuator that is directly coupled to the valve. The linear actuator delivers a maximum of 100 pounds or 450 Newtons force at rated voltage. The direction of stroke is reversible. Valve sizing ranges from 1/2 inch to 2 inches with a maximum close-off pressure of 250 PSIG.

In low pressure steam applications, it is necessary to shield the actuator from heat generated by the valve. This is accomplished by an adapter kit, the DDSTM. The kit is available separately and factory installed.

Specifications

Item Number	GSA0004YB1AT060
Brand	Neptronic
Control Input	Floating
Control Valves Type	Globe Valves
CV/GPM	0.4
End Switch
Spring Return	Electronic Fail-Safe
Valve Size	0.5"-2 WAY
Voltage	24V
