GS A0004YB1 + AT060 | 0.5" | 2 WAY Globe Valves | NPT Female Brass Body & Trim | A & M Linear Actuators | 100 lb | 24V | ON/OFF| Floating | Electronic Fail Safe | Neptronic (OBSOLETE)

Brand: NeptronicSKU: GS A0004YB1 + AT060

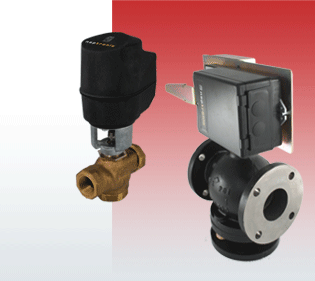

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS A0004YB1 + AT060

Jump to: Overview & Specifications Reviews

Overview Details for GS A0004YB1 + AT060

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Description

The Linear actuated Globe Valves provide digital or analog control in 2 Way applications, for water or low pressure steam service. Each unit is comprised of a linear actuator that is directly coupled to the valve. The linear actuator delivers a maximum of 100 pounds or 450 Newtons force at rated voltage. The direction of stroke is reversible. Valve sizing ranges from 1/2 inch to 2 inches with a maximum close-off pressure of 250 PSIG.

In low pressure steam applications, it is necessary to shield the actuator from heat generated by the valve. This is accomplished by an adapter kit, the DDSTM. The kit is available separately and factory installed.

Specifications

Item Number	GS A0004YB1 + AT060
Brand	Neptronic
Control Input	Floating
Control Valves Type	Globe Valves
CV/GPM	0.4
End Switch
Spring Return	Electronic Fail-Safe
Valve Size	0.5"-2 WAY
Voltage	24V
