GMD0200YB1AM060 | 3 WAY Globe Valves | NPT Female Brass Body & Trim | A & M Linear Actuators | 100 lb | 24V | ON/OFF | Floating | Modulating | Electronic Fail Safe | Neptronic

3 WAY Globe Valves | NPT Female Brass Body & Trim | A & M Linear Actuators | 100 lb | 24V | ON/OFF | Floating | Modulating | Electronic Fail Safe

Description

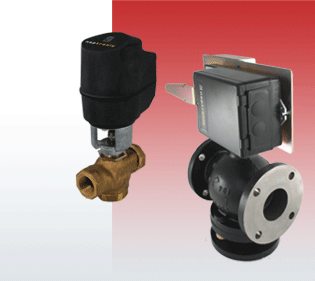

The Linear actuated Globe Valves provide digital or analog control in 3 Way applications, for water or low pressure steam service. Each unit is comprised of a linear actuator that is directly coupled to the valve. The linear actuator delivers a maximum of 100 pounds or 450 Newtons force at rated voltage. The direction of stroke is reversible. Valve sizing ranges from 1/2 inch to 2 inches with a maximum close-off pressure of 250 PSIG. Valve specifications are for standard stock; data sheets for valves with different characteristics, such as 3 Way diverting, stainless steel seats and plugs or threaded or sweat fittings, are available upon request. In low pressure steam applications, it is necessary to shield the actuator from heat generated by the valve. This is accomplished by an adapter kit, the DDSTM. The kit is available separately and factory installed.
