GM C0140YB1 + TM060 | 3 WAY Globe Valves | NPT Female Brass Body & Trim (high close OFF) | T series low voltage Actuators | 180 in.lb | 24V | ON/OFF | Floating | Modulating | Electronic Fail Safe | Neptronic (OBSOLETE)

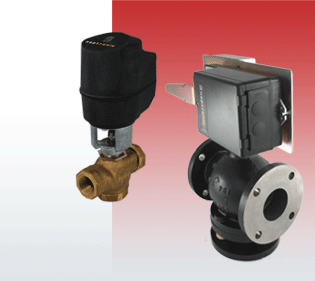

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GM C0140YB1 + TM060
Overview
Details for GM C0140YB1 + TM060
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
3 WAY Globe Valves | NPT Female Brass Body & Trim (high close OFF) | T series low voltage Actuators | 180 in.lb | 24V | ON/OFF | Floating | Modulating | Electronic Fail Safe
The Linear actuated Globe Valves provide digital or analog control in 3 Way applications, for water or low pressure steam service. Each unit is comprised of a linear actuator that is directly coupled to the valve. The linear actuator delivers a maximum of 100 pounds or 450 Newtons force at rated voltage. The direction of stroke is reversible. Valve sizing ranges from 1/2 inch to 2 inches with a maximum close-off pressure of 250 PSIG. Valve specifications are for standard stock; data sheets for valves with different characteristics, such as 3 Way diverting, stainless steel seats and plugs or threaded or sweat fittings, are available upon request.Specifications
Item Number | GM C0140YB1 + TM060 |
Brand | Neptronic |
Control Input | Modulating |
Control Valves Type | Globe Valves |
CV/GPM | 14 |
End Switch | |
Spring Return | Electronic Fail-Safe |
Valve Size | 1"-3 WAY |
Voltage | 24V |
