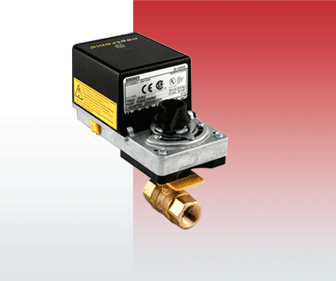

FPF2660YS1BT000S | 2 WAY Full Port Ball Valves | NPT Female Brass Body & Stainless Steel Ball | B series low voltage Actuators | 50 in.lb | 24V | ON/OFF | Floating | Neptronic

2 WAY Full Port Ball Valves | NPT Female Brass Body & Stainless Steel Ball | B series low voltage Actuators | 50 in.lb | 24V | ON/OFF | Floating

The Full Port Series are actuated 2 Way Ball Valves that can provide digital or analog control of hot and chilled water systems up to 50% glycol. Each unit is comprised of a rotary actuator and linkage assembly coupled to the valve body that offers high flow and positive Close-Off with low torque. The standard full port design is less restrictive than other styles, providing high flow characteristics with low pressure drops. Valve sizing ranges from 1/2 inch to 3 inches with a CloseOff pressure of 100 PSIG. These low profile, compact units are able to be installed with ease in the often tight, restricted areas found in unit ventilators, fan coils, terminal reheat coils and larger air handlers.
