FPD1020YP1DT060S | 2 WAY Full Port Ball Valves | NPT Female Brass Body & Nickel Plated Ball | D series low voltage Actuators | 35 in.lb | 24V | ON/OFF | Floating | Electronic Fail Safe | Neptronic

Brand: NeptronicSKU: FPD1020YP1DT060S

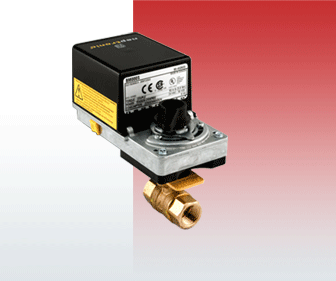

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FPD1020YP1DT060S

Jump to: Overview & Specifications Reviews

Overview Details for FPD1020YP1DT060S

The Full Port Series are actuated 2 Way Ball Valves that can provide digital or analog control of hot and chilled water systems up to 50% glycol. Each unit is comprised of a rotary actuator and linkage assembly coupled to the valve body that offers high flow and positive Close-Off with low torque. The standard full port design is less restrictive than other styles, providing high flow characteristics with low pressure drops. Valve sizing ranges from 1/2 inch to 3 inches with a CloseOff pressure of 100 PSIG. These low profile, compact units are able to be installed with ease in the often tight, restricted areas found in unit ventilators, fan coils, terminal reheat coils and larger air handlers.

Specifications

Item Number	FPD1020YP1DT060S
Brand	Neptronic
Control Input	Floating
Control Valves Type	Ball Valves
CV/GPM	102
End Switch
Spring Return	Electronic Fail-Safe
Valve Size	1.25"-2 WAY
Voltage	24V
