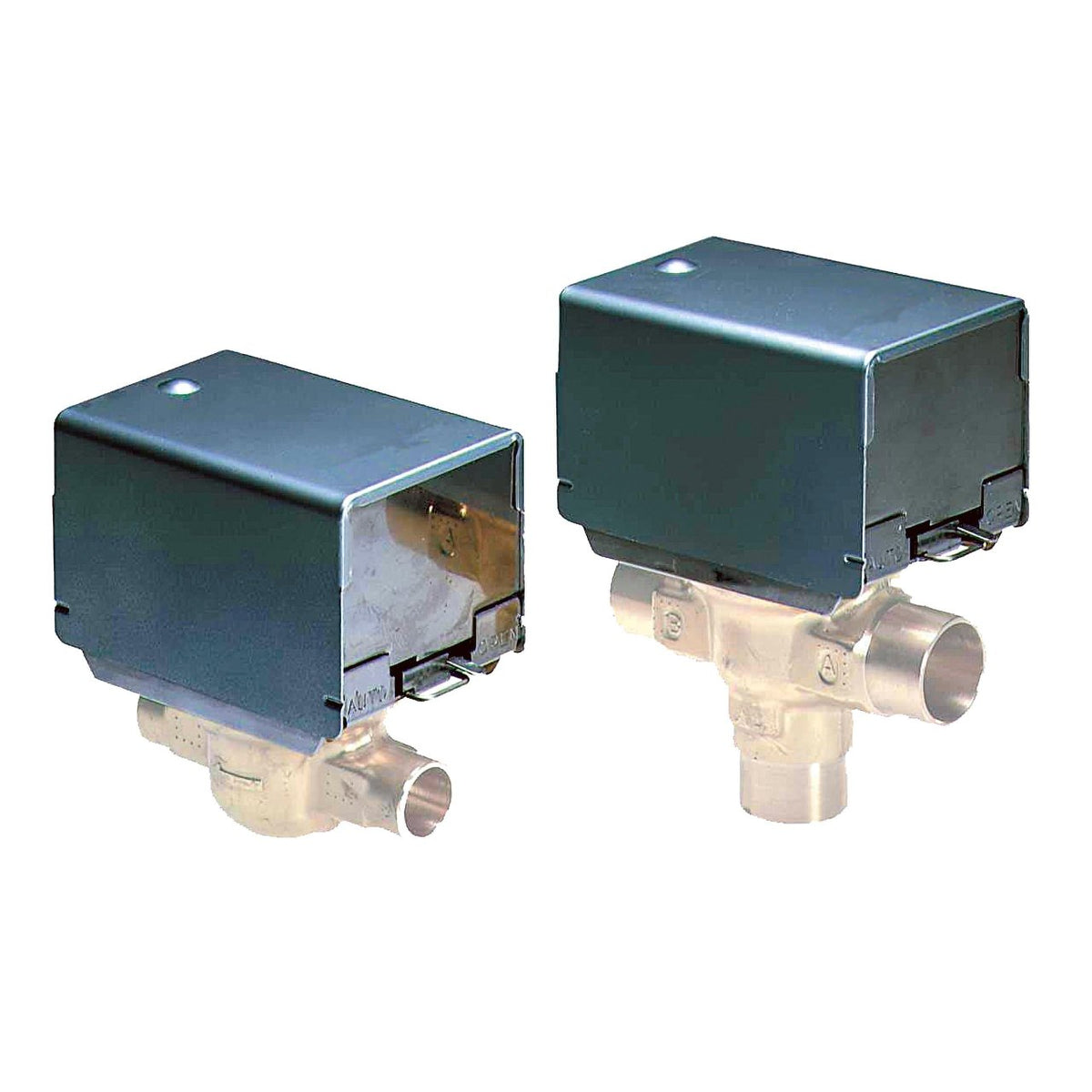

VU444A1007/B | TWO-POSITION ACTUATOR FOR VU52 N.O. AND VU54 VALVE BODIES, 120V 60HZ | Resideo

Brand: ResideoSKU: VU444A1007/B

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VU444A1007/B

Jump to: Overview & Specifications Reviews

Overview Details for VU444A1007/B

VU444A1007/B 120V ACT(VU52/VU54) BULK PACK: Resideo's VU444A1007/B is a 120V ACT (VU52/VU54) bulk pack designed for industrial and commercial applications. This product is specifically tailored to meet the demands of industrial engineers and maintenance professionals. Key Features and Benefits: * 120V voltage for compatibility with a wide range of electrical systems * ACT (Automatic Changeover Transformer) technology provides automatic switching between AC and DC power sources, ensuring continuous operation during power outages * VU52/VU54 compatibility for seamless integration with existing systems * Bulk pack provides cost savings and convenience Applications: * Industrial automation and control systems * Security and surveillance systems * HVAC and refrigeration systems * Commercial and industrial lighting systems Our HVAC supply store is your trusted source for industrial and commercial products. We offer competitive prices and fast shipping to ensure your projects stay on track. Contact us today to learn more about the VU444A1007/B 120V ACT (VU52/VU54) BULK PACK and other products from Resideo.

Specifications

Application: HVAC
Dimensions (in.): 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
Dimensions (mm): 62 mm high, 88 mm wide, 60 mm deep
Used With: 2-way NO (VU52) or 3-way VU valve body (VU54)
Materials: Stainless Case, Aluminum Cover
Comments: For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Item Type: Product
Frequency: 60 Hz
Approvals, Canadian Standards Association: Certified C/US File No. LR1322
Electrical Connections: Leads
Supply Voltage: 120V
Power Consumption: Driving-- 6 Watts
Ambient Temperature Range (C): 1 C to 52 C ambient at 93 C Fluid
Ambient Temperature Range (F): 34 F to 125 F ambient at 200 F Fluid
Electrical Connections (in.): 6 in.
Electrical Connections (mm): 0.15 m
Internal Auxiliary Switch: 0
Fluid Temperature (C): 94 C
Fluid Temperature (F): 200 F
Actuator Type: Valve
Control Signal: Two position; SPST
Fail Safe Mode: Spring Return
Stroke (in.): 45 deg.
Timing, Nominal: Driving @ 60 Hz (sec)-- 15 sec maximum
Spring Return Timing: Nominal-- 6 sec
Maximum Differential Pressure Ratings (Close-off) (psi): Depends on Cv rating of valve
Maximum Differential Pressure Ratings (Close-off) (kPa): Depends on Cv rating of valve
Manual operation: Lever
