1F97-1277 | Blue Series 12 Inch Touchscreen Thermostat | Universal Multi Stage | Emerson Climate-White Rodgers

Brand: Emerson Climate-White RodgersSKU: 1F97-1277

Emerson Climate-White Rodgers | 1F97-1277

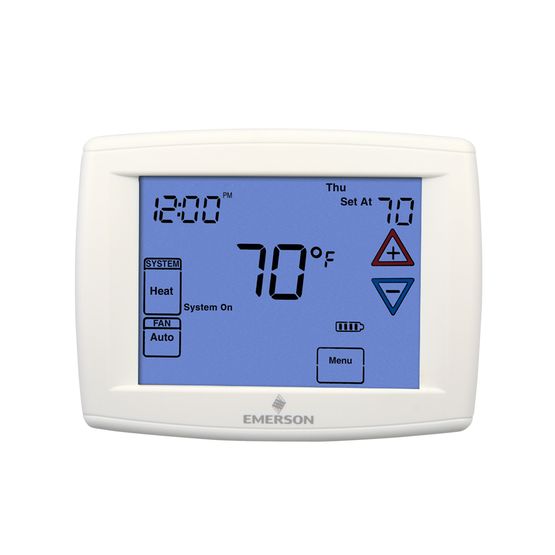

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1F97-1277

Jump to: Overview & Specifications Reviews

Overview Details for 1F97-1277

Emerson Climate-White Rodgers TouchScreen 1 Stage 7-Day RemSns, SKU: 1F97-1277. This user-friendly thermostat features a large, high-resolution touchscreen for precise temperature control. With its advanced programming capabilities, it offers flexible scheduling options for customized comfort. Ideal for residential and light commercial applications, this thermostat provides energy-efficient temperature management and enhances occupant comfort. Its easy-to-use interface and intuitive design make it a convenient and reliable choice for managing your indoor climate.

Universal, Commercial, Humidity Control and Single Stage Thermostats provide ultimate comfort, features and performance.

Universal models quickly configure for single stage, multi-stage or heat pump
Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
Humidification/dehumidification control
Commercial model offers occupied damper or economizer control
Keypad lockout and set-point temperature limits

Specifications

Program Options: Programmable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options: 4, 2, None
Stages Heat/Cool: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 3H/2C; 4H/2C on Dual Fuel systems when using an Outdoor Remote Sensor
Style: Horizontal
Typical Applications: Gas/Oil/Electric
Terminals: RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -
3-Wire Zone Valve Connections: Yes
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Remote Sensor Options: 1 Indoor or Outdoor
Power Source: Battery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool): Yes
Fan Option: Auto, On, Programmable Fan or Comfort Circulating Fan
Filter Change Reminder: Yes
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: Total or Partial
Set-Point Temperature Limits: Yes
Display Type: 12 square in.
Backlight: Key Press or Continuous with Common Wire
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
