1F86-344 | Classic 80 Series Thermostat | Conventional Single Stage | Emerson Climate-White Rodgers

Brand: Emerson Climate-White RodgersSKU: 1F86-344

Emerson Climate-White Rodgers | 1F86-344

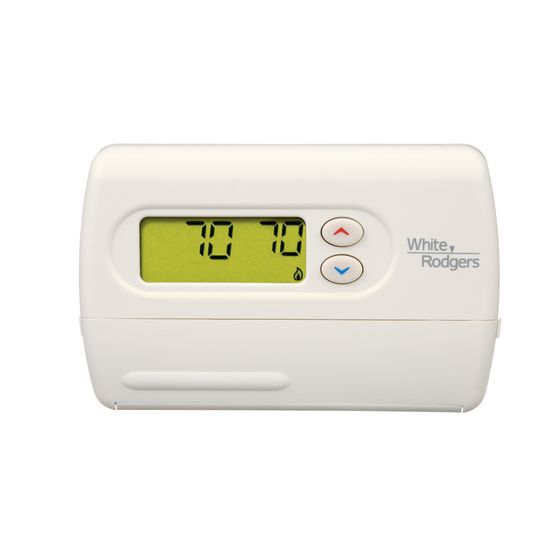

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1F86-344

Jump to: Overview & Specifications Reviews

Overview Details for 1F86-344

Emerson Climate-White Rodgers NCO-1F86-344 Non-Programmable Thermostat The Emerson Climate-White Rodgers NCO-1F86-344 is a 24v digital battery-powered non-programmable thermostat. It features a backlit display for easy reading, and simple push-button controls for quick and convenient temperature adjustments. This thermostat is ideal for a wide range of applications, including residential, commercial, and industrial. It is compatible with most heating and cooling systems, and can be used to control a variety of heating and cooling equipment, including furnaces, air conditioners, and heat pumps. The NCO-1F86-344 is a reliable and affordable thermostat that provides precise temperature control and energy savings. It is backed by the Emerson Climate-White Rodgers name, a leader in the HVAC industry. Features: * 24v digital battery-powered non-programmable thermostat * Backlit display for easy reading * Simple push-button controls for quick and convenient temperature adjustments * Compatible with most heating and cooling systems * Can be used to control a variety of heating and cooling equipment, including furnaces, air conditioners, and heat pumps * Reliable and affordable thermostat that provides precise temperature control and energy savings * Backed by the Emerson Climate-White Rodgers name, a leader in the HVAC industry Our HVAC supply store offers the best prices and fast shipping so you can get the parts you need, when you need them.

Our best selling digital thermostat available as a Single Stage Thermostat offering proven performance and reliability.

Choice of battery powered, dual power or hardwired model
Fossil fuel or electric heat compatible
Permanent program retention during power loss
Configuration menu allows keypad selection of options
Selectable energy management recovery (1F80-361 / 1F87-361 / 1F82-261)

Specifications

Program Options: Non-Programmable
Program Periods Per Day Options: None
Stages Heat/Cool: Single Stage - 1H/1C
Style: Horizontal
Typical Applications: Gas/Oil/Electric
Terminals: RC, RH, C, W, Y, O, B, G
3-Wire Zone Valve Connections: No
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: No
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery, Hardwire
Auto Changeover (Heat/Cool): No
Fan Option: Auto, On
Filter Change Reminder: Yes
Energy Mgt. Recovery/Early Start: No
Keypad Lockout: No
Set-Point Temperature Limits: No
Display Type: 2.2 square in.
Backlight: Key Press
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
