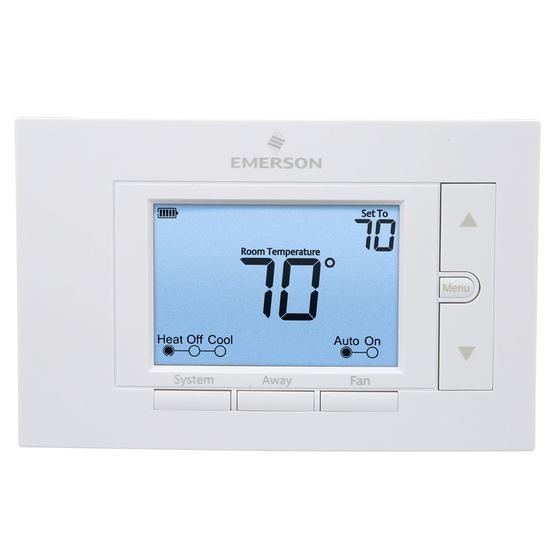

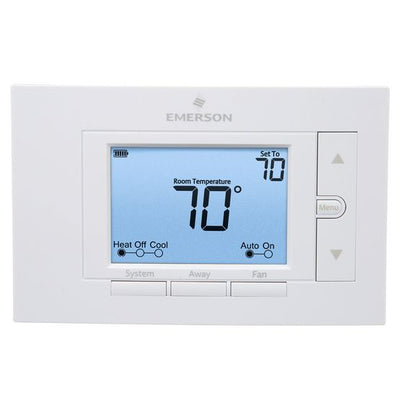

1F85U-22NP | 80 Series Thermostat | Universal Multi Stage | Emerson Climate-White Rodgers

Brand: Emerson Climate-White RodgersSKU: 1F85U-22NP

Emerson Climate-White Rodgers | 1F85U-22NP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1F85U-22NP

Jump to: Overview & Specifications Reviews

Overview Details for 1F85U-22NP

Emerson Climate-White Rodgers 2HT/2CL CONV NON-PROG TSTAT (1F85U-22NP) is designed for non-programmable temperature control applications. This versatile thermostat features dual heating and cooling control, providing customizable temperature settings for various HVAC systems. The easy-to-use interface allows for quick and precise temperature adjustments, ensuring optimal comfort levels. Its compact design and sleek appearance make it an ideal choice for residential, commercial, and industrial settings. The durable construction ensures long-lasting performance in demanding environments. Shop now!

Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.

Large display, bright backlight, high contrast screen
Easy to install with built-in level, simple set-up menu and separate subbase
Non-Programmable
Dual fuel control, no outdoor sensor required, standard on all staging models
Auto changeover on all universal models
Keypad lockout and adjustable heat/cool temperature limits
5 year limited warranty for professionals

Specifications

Program Options: Non-Programmable
Program Periods Per Day Options: None
Stages: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 2H/1C
Style: Horizontal
Typical Applications: Gas/Oil/Electric
3-Wire Zone Valve Connections: Yes
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Humidity Control: RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
Heat Pump Dual Fuel Control: Yes, No Sensor Required
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery, Hardwire
Auto Changeover (Heat/Cool): Yes
Fan Option: Auto, On
Filter Change Reminder: No
Energy Mgt. Recovery/Early Start: No
Keypad Lockout: Total
Set-Point Temperature Limits: Yes
Display Type: 5 square in.
Backlight: Key Press or Continuous with Common Wire
Voltage: 20-30 Vac, NEC Class II 50/60Hz
Battery Power Rating: mV to 30 Vac
Amp Rating: Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined
