944138 | 1/4MIP X 1/4HB FRGD MINI B-VLV, Valves, Mini Ball Valve, Hose Barb x Male | Midland Metal Mfg.

Brand: Midland Metal Mfg.SKU: 944138

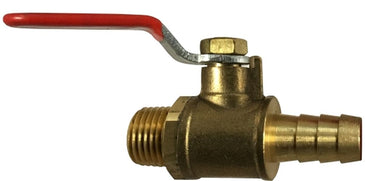

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 944138

1/4MIP X 1/4HB FRGD MINI B-VLV, Valves, Mini Ball Valve, Hose Barb x Male

Item Number	944138
Brand	Midland Metal Mfg.
Additional Information	1/4-18 Thread Size; 0.150 lb Weight
Ball Material	Brass
Body Material	Forged Brass
Category	Valves
Connection Type	MIP x Hose Barbed
Description	Hose Barb x Male
Dimensions	2.98 in OAL x 1.51 in H
Disc Material	Brass
Domestic/Import	Import
Handle Material	Steel
Inlet to Outlet Length	2.08 in
Material	Brass
Nominal Size	1/4 in
Operator Type	180 deg Operational Handle
Pressure Rating	200 psi WOG
Seat Material	PTFE
Section	Mini Ball Valve
Shape	Valve
Stem Material	Brass
Temperature Rating	-20 to 250 deg F
Trim Material	Steel Screw/NBR O-Ring/Steel Nut
