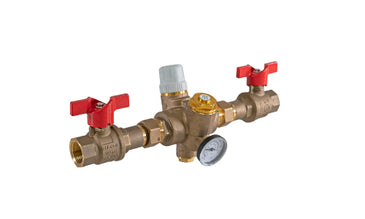

1/2" | TB-130MG | Thermostatic Balancing Valve, Variable Set Point, 150 CWP, Thermal Disinfection w/Dual Isolation

The RecircSetterTM by Jomar Valve is an adjustable thermostatic balancing valve for domestic hot water recirculationsystem applications. This balancing valve utilizes a thermostatic cartridge, which eliminates the need for pressure portsto balance the system and allows the valve to balance based on temperature as opposed to pressure or flow.
The RecircSetterTM is certified to NSF 61 and NSF 672 for potable hot water systems and has an adjustable hand wheelwith a temperature range from 95°F to 140°F. It can be equipped with a thermal cartridge for thermal disinfection treatmentat a fixed temperature of 160°F, or with an actuated bypass to fully control the thermal disinfection process with a BuildingManagement System (BMS). The RecircSetterTM is available with female NPT connections, a drywell thermometer, and isequipped with a temperature sensor port for remote monitoring (½” NPT plugged).

• Variable temperature set point with protective cap
• Modulates flow to maintain constant temperature
• No balancing equipment required
• Heat treated DZR alloy
• 100% Made in Italy
• Drywell with temperature gauge comes standard
• 1/2" NTP temperature port (factory plugged)
• Equipped with dual isolation ball valves
• Union connections on the ball valves
• Integral check valve in downstream isolation valve
