ULTRA CAP; ULTRA CAP CAPILLARIES SCHRADER DEPRESSOR IN 1 END 2 STRAIGHT FITTINGS

Description

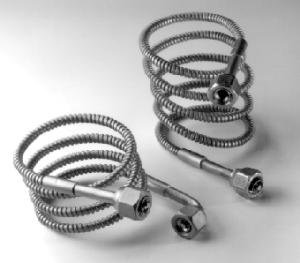

The SEC99A UltraCap Armored Capillary is designed for use as a pressure connection in refrigeration and air conditioning applications. This small-orifice capillary minimizes pressure pulsation, and the brass armor sleeve improves resistance to abrasion caused by vibration. The copper capillary inside the armored sleeve allows no effusion of refrigerant to the environment.

UltraCap is designed for use with 1/4 in. SAE external flare fitting connectors, such as those found on the Johnson Controls/PENN® lines of pressure-actuated controls. Integral Schrader valve depressors are available. UltraCap Armored Capillary is compatible with all common non-corrosive refrigerants. The UltraCap capillary is available in a variety of lengths, and in models with two straight fittings or with one straight fitting and one 90° elbow fitting.

Repair Information

If the SEC99A UltraCap Armored Capillary fails to operate within its specifications, replace the unit. For a replacement capillary, contact the nearest Johnson Controls® representative.

• Armored Capillary for use in Refrigeration & Air Conditioning Applications
• Two Straight 1/4" Female Flare Connector w/Schrader Depressor
