VR3H6UPNH/M | 3-WAY, 3 INCH, RESILIENT SEAT BUTTERFLY VALVE, CV302, CLOSE-OFF 200PSI, 24-240VAC, FLOATING / 2-POSITION, 150S, FAIL-SAFE IN PLACE, NEMA4, (INCLUDESMBP6U6SH/U ACTUATOR) | Honeywell

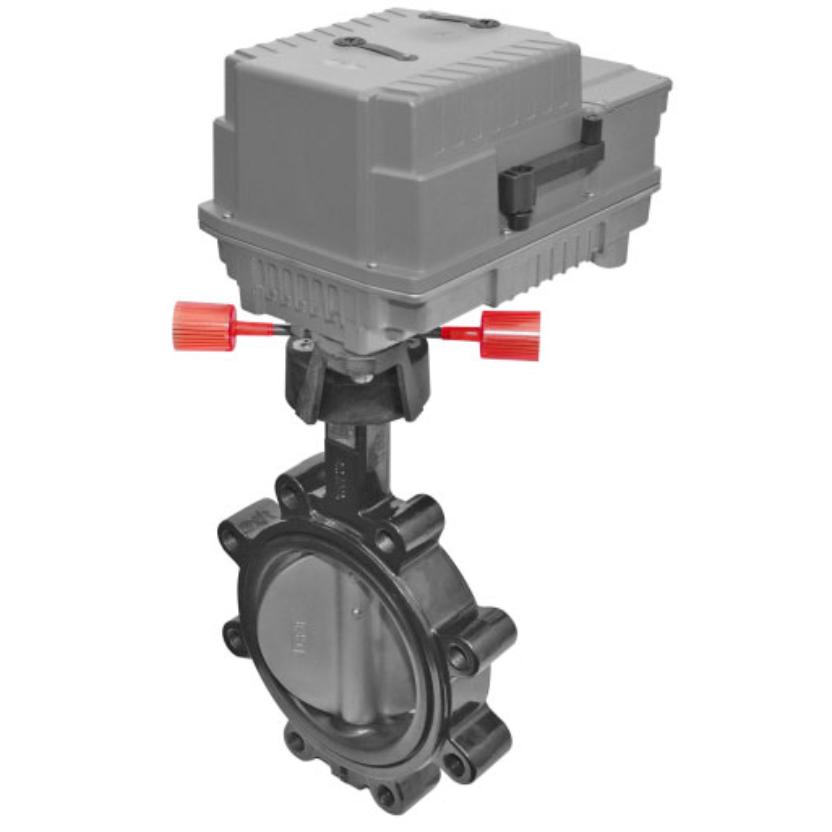

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VR3H6UPNH/M
Documents and manuals
Honeywell VR3H6UPNH/M Documents
Overview
Details for VR3H6UPNH/M
3-WAY, 3 INCH, RESILIENT SEAT BUTTERFLY VALVE, CV302, CLOSE-OFF 200PSI, 24-240VAC, FLOATING / 2-POSITION, 150S, FAIL-SAFE IN PLACE, NEMA4, (INCLUDESMBP6U6SH/U ACTUATOR)
Description
The VR3H6UPNH/M is a high-performance butterfly valve from Honeywell’s VRVH series used for cooling water, air, gases, steam, as well as high-pressure and high-temperature fluids. The valve supports condensing waters with up to 60% glycol and an ON/OFF steam control in HVAC systems of up to 50 PSI (pounds per square inch) rating.
The Honeywell’s VRVH butterfly valves have a carbon steel body, stem, and disks. This model includes an electric actuation interface available in two-position, tri-state, or modulating control (2-10 VDC).
Features and Benefits
- Zero leakage rating
- Can be manually overridden on all models
- Has a modulating control (2-10 VDC)
- Extreme temperature resistance and velocity support
- Quick operation with less time required to open and close the valve
Specifications
- The body, disks, and stem are made from 316 carbon steel.
- 17-4 PH stainless shaft.
- 32 FPS of maximum velocity.
- Supports temperature from -22 up to 400 degrees Fahrenheit (-30 to 204 degrees Celcius).
- 150 PSI close-off pressure rating.
- NEMA 2 enclosure actuators for 3-inch valves.
Specifications
Item Number | VR3H6UPNH/M |
Brand | Honeywell |
Control Valves Type | Butterfly Valve |
