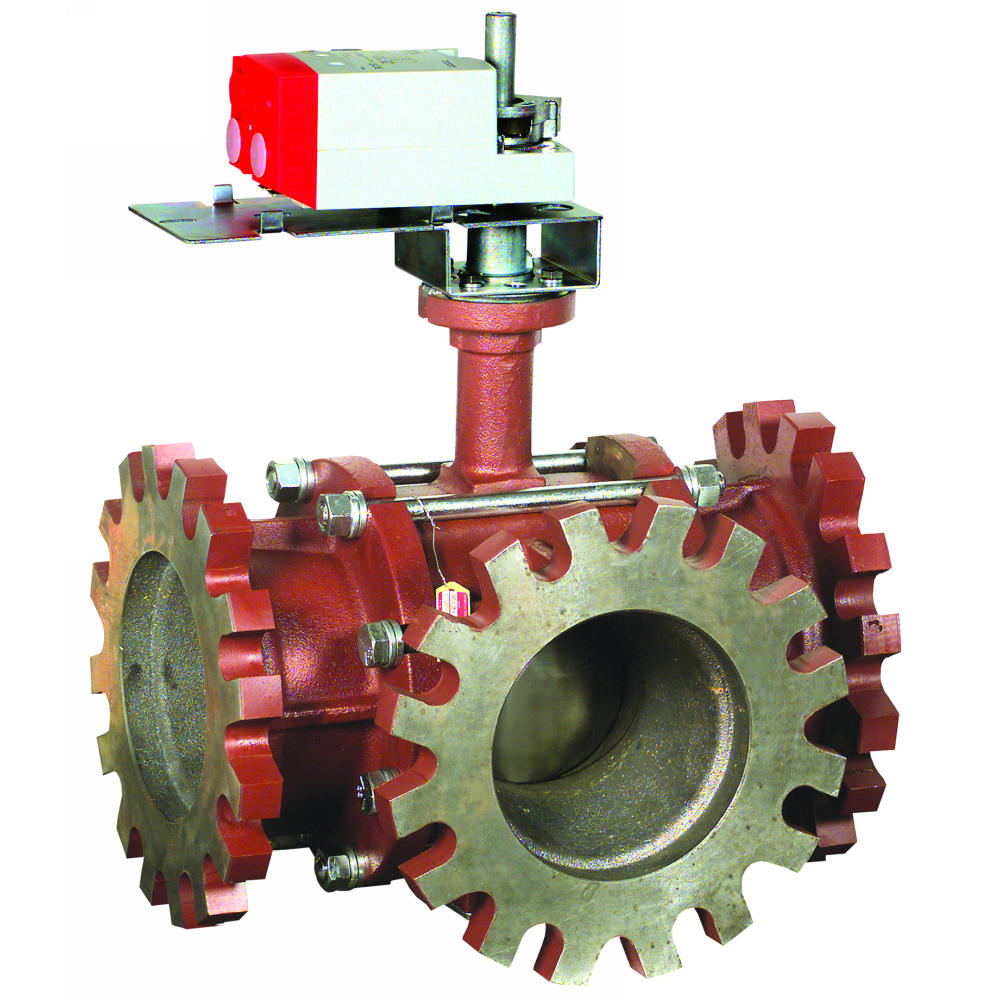

VBF3KU1S0B/M | 5. INCH, 3-WAY ACTUATED CONTROL BALL VALVE, WITH 144 CV, NSR MODULATING ACTUATOR | Honeywell
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VBF3KU1S0B/M
Documents and manuals
Honeywell VBF3KU1S0B/M Documents
Overview
Details for VBF3KU1S0B/M
5. INCH, 3-WAY ACTUATED CONTROL BALL VALVE, WITH 144 CV, NSR MODULATING ACTUATOR
Description
VBF3KU1S0B/M is a three-way control ball valve from Honeywell designed for a broad spectrum of applications. It provides water-side control in HVAC (heating, ventilation, and air conditioning) systems with quick-acting operations and good regulation characteristics.
The VBF3 series three-way ball valve assemblies are suited for chilled and hot fluids (with up to 50% glycol solutions). You can order this ball valve with a spring-return direct-coupled actuator.
Features and Benefits
All models from Honeywell’s VBF3 series offer:
- Optional NEMA 3R enclosure. The ball valve has substantial protection against weather, making it an excellent choice for indoor and outdoor applications.
- Extremely durable. The steam and ball are made from 316 stainless steel, while the body is ASTM A395 cast iron. The ball seals are Teflon, and stem seals are EPDM O-rings.
- Great temperature range. The valve has a strong temperature resistance, ranging from -2 to 250 degrees Fahrenheit (-30 to 121 degrees Celcius).
- Various sizes. The valve supports ANSI Class 125 flanged connections from 4 to 6 inches in diameter.
- Spring-return options. You can order your three-way control valve with or without a spring-return actuator.
- Leakage protection. The assembly has less than a 0.01% CV leakage rating for most valve sizes.
- Field configuration. Set up the valve for normally open or close fail-safe positions.
- Multiple mounting options. The actuator is easy to install and has four mounting positions.
Specifications
Item Number | VBF3KU1S0B/M |
Brand | Honeywell |
Control Valves Type | Ball Valve |
