WCV2250VS | 2-1/2" CPVC Wafer Full Pattern Check Valve w/SS spring; FPM o-ring | Hayward

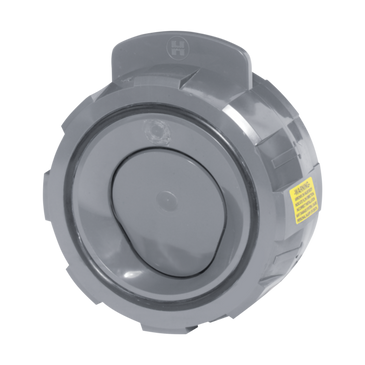

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WCV2250VS

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward WCV2250VS Documents

Datasheet More Info

Overview

Details for WCV2250VS

2-1/2" CPVC Wafer Full Pattern Check Valve w/SS spring; FPM o-ring

New Full Pattern Wafer Check Valves in PVC and CPVC, sizes 2" - 8' with FPM or EPDM Gasket and Disc Seals. Spring return option in 316 Stainless Steel or Hastelloy materials. No spacers or specialty flanges required.

• Robust Full Pattern Body
• Available in PVC and CPVC
• No Special Spacers or Flanges Required
• High Cv Rating, Saves on Energy and Pump Wear
• FPM or EPDM Gasket and Face Seal
• One-Piece Disc and Shaft Design
• Designed for ANSI150 and PN10 Flanges*
• Contoured Inlet Port for Reduced Head Loss
• Lower Closing Pressure than Swing Check Valves
• Integral Bolt Eyes for Ease of Installation for Large Sizes (4" - 8")
• Can be Installed in Vertical or Horizontal Position
• Pressure Rated to 150 PSI/PN10 in All Sizes

Specifications

Item Number	WCV2250VS
Brand	Hayward
A	2.3 in
B	0.25 in
C	0 in
Category	Check Valves
Category	Thermoplastic Valves
Class	WCV Series Full Pattern Wafer Check Valves
Cv Coefficient	144.0000
Cv	155
D	4.75 in
E	2.43 in
End Connection Type	Full Pattern Wafer
F	6 in
G	0 in
H	0 in
J	0 in
Material	CPVC
O - Rings Seals	FPM
Opening Pressure (Estimated)	1 psi
Pipe Size	2-1/2 in
Pressure Rating	150 PSI
Pressure Rating	150 PSI at 70°F Non-Shock
Sealing Material	FPM
Sealing Pressure (with or without Spring)	3 psi
Series	WCV Series Full Pattern Wafer Check Valves
Size	2-1/2"
Spring Material	316 Stainless Steel
Spring Material	Stainless Steel Spring
Sub Category	Check Valves
SubCategory	Full Pattern Wafer Check Valve - WCV Series
Subtype	Check Valves
Type	Thermoplastic Valves
