Documents: TW1200F

Datasheet More Info

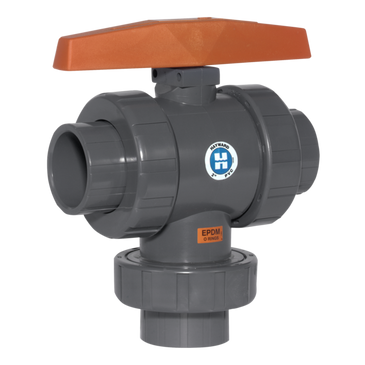

TW1200F | 2" PVC 3-Way True Union Ball Valves w/FPM o-rings; flanged end connections | Hayward

Brand: HaywardSKU: TW1200F

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW1200F

Jump to: Overview & Specifications Reviews

Overview Details for TW1200F

2" PVC 3-Way True Union Ball Valves w/FPM o-rings; flanged end connections

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. Depending on flow configuration, see our Library, there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Position Indicator
• Easily Actuated
• PTFE Seats
• FPM or EPDM O-Rings
• Double O-Ring Stem Seal

Specifications

Item Number	TW1200F
Brand	Hayward
A	4.40 in
B	6.00 in
Body Ball Material	PVC / TW Ball
Body Material	PVC
C	2.00 in
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Standard Body
Class	TW Series Three Way Ball Valves
Cv Coefficient	58.0000
Cv Factor	58.0
D	4.31 in
E	6.75 in
End Connection Type	Flanged
End Connection	Flanged
F	12.25 in
G	4.75 in
H	3.95 in
J	5.00 in
Operation Type	Manual
Pipe Size	2 in
Sealing Material	FPM
Seals	FPM
Series	TW Series Horizontal Three Way True Union Ball Valves
Size	2"
Sub Category	Ball Valves
SubCategory	3-Way Ball Valves - TW Series
Subtype	Ball Valves
Subtype	Three Way True Union Ball Valves
Type	Thermoplastic Valves
