TBH1100ASTVK000 | 1" PVC TBH Series Ball Valve, SOC/THD Ends, FPM Seals, Actuation Ready | Hayward

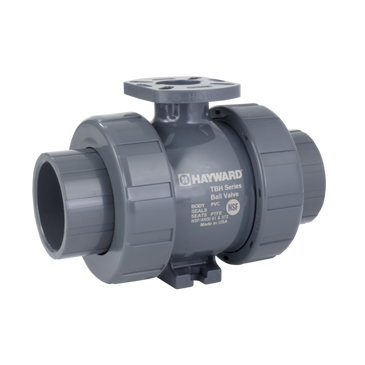

Hayward | TBH1100ASTVK000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TBH1100ASTVK000

Documents and manuals

Hayward TBH1100ASTVK000 Documents

Overview

Details for TBH1100ASTVK000

1" PVC TBH Series Ball Valve, SOC/THD Ends, FPM Seals, Actuation Ready

The TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 70°F non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.

• Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F / 23°C.
• Integral ISO 5211 Mounting Pad for Easy Actuation
• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• System2™ Sealing Technology Seat Carrier Design for sizes up to 2”/DN50– Patent Pending
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward TB Series

Specifications

Item Number TBH1100ASTVK000
Brand Hayward
Body Material PVC
Category Thermoplastic Valves
Category True Union Ball Valves
Chassis Description Standard Body
Class TBH Series True Union Ball Valves
Cv Coefficient 29
Cv Coefficient 29.0000
End Connection Material PVC
End Connection Type Socket/Threaded
End Connection Socket/Threaded
Flow Configuration Bi-directional
Material PVC
O-Ring Material FPM
Operating Pressure [Max] 16 bar 250 psi
Operation Type Actuation Ready
Pipe Size 1 in
Pressure Rating 250 PSI
Sealing Material FPM
Seat Material PTFE
Series TBH
Series TBH Series True Union Ball Valves
Size 1"
Sub Category Ball Valves
SubCategory TBH Series Ball Valves
Subtype Ball Valves
Subtype Industrial Ball Valves
Type Thermoplastic Valves
Valve Material PVC
Valve Type Ball
