TC50075S | 3/4" PVDF True Union Ball Check Valves w/FPM o-rings; IPS Socket Fusionend connections | Hayward

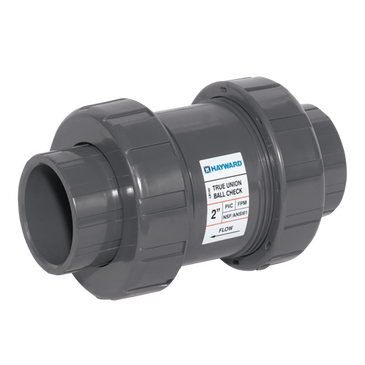

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TC50075S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward TC50075S Documents

Datasheet More Info

Overview

Details for TC50075S

3/4" PVDF True Union Ball Check Valves w/FPM o-rings; IPS Socket Fusionend connections

TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and PP
• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	TC50075S
Brand	Hayward
A	4.75 in
B	0.75 in
Body Material	PVDF
C	2.63 in
Category	Check Valves
Category	Thermoplastic Valves
Class
Cv Coefficient	7.7000
Cv Factor	7.7
D	1.00 in
End Connection Type	Socket/Fusion
End Connection	Socket
Material	PVDF
Pipe Size	3/4 in
Pressure Rating Non-Shock	150 psi/ 10 bar
Pressure Rating	235 PSI
Sealing Material	FPM
Seals	FPM
Size	3/4"
Spring Material	N/A
SubCategory	True Union Ball Check Valves - TC Series
Subtype	TC Series True Union Ball Check Valves
Suby Category	Check Valves
