TBH1100ASTE0000 | 1" PVC TBH Series Ball Valve, SOC/THD Ends, EPDM Seals | Hayward

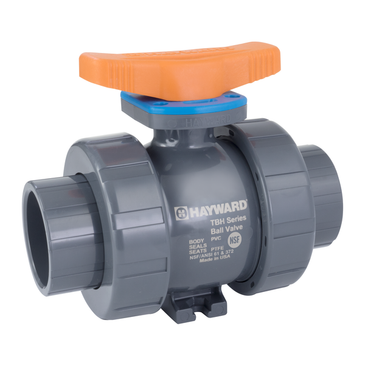

1" PVC TBH Series Ball Valve, SOC/THD Ends, EPDM Seals

The TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Available in sizes 1/4˝ through 6” / DN15 – DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 – 4”/DN100 sizes are pressure rated for 235psi at 70°F non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.
