TC30200S | 2" PP True Union Ball Check Valves w/FPM o-rings; IPS socket fusion end connections | Hayward

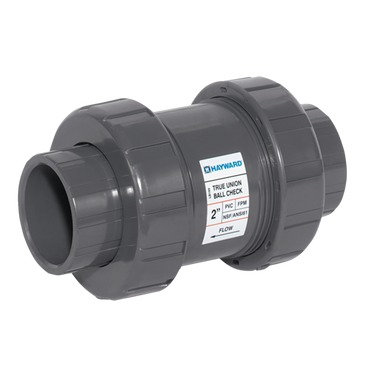

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TC30200S
Overview
Details for TC30200S
2" PP True Union Ball Check Valves w/FPM o-rings; IPS socket fusion end connections
TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.
• Available in PVC, CPVC and PP• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed
Specifications
Item Number | TC30200S |
Brand | Hayward |
Category | Thermoplastic Valves |
Class | TC Series True Union Check Valves |
Cv Coefficient | 130.0000 |
End Connection Type | Socket/Fusion |
Material | PP |
Pipe Size | 2 in |
Pressure Rating | 235 PSI |
Sealing Material | FPM |
Series | TC Series True Union Ball Check Valves |
Spring Material | N/A |
Sub Category | Check Valves |
Subtype | Check Valves |
Type | Thermoplastic Valves |
