TC10050ST | 1/2" PVC True Union Ball Check Valves w/FPM o-rings; socket/threaded end connections | Hayward

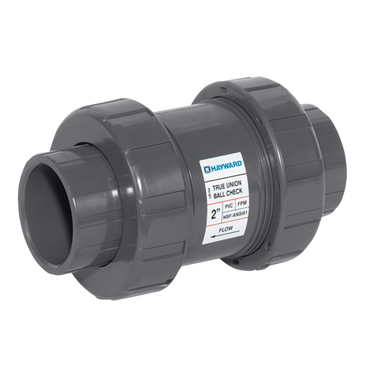

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TC10050ST

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward TC10050ST Documents

Datasheet More Info

Overview

Details for TC10050ST

1/2" PVC True Union Ball Check Valves w/FPM o-rings; socket/threaded end connections

TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and PP
• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	TC10050ST
Brand	Hayward
A	4.66 in
B	0.50 in
Body Material	PVC
C	2.25 in
Category	Check Valves
Category	Thermoplastic Valves
Class	TC Series True Union Check Valves
Cv Coefficient	4.8000
Cv Factor	4.8
D	0.75 in
End Connection Type	Socket/Threaded
End Connection	Socket/Threaded
Material	PVC
Pipe Size	1/2 in
Pressure Rating	235 PSI
Sealing Material	FPM
Seals	FPM
Series	TC Series True Union Ball Check Valves
Size	1/2"
Spring Material	N/A
Sub Category	Check Valves
SubCategory	True Union Ball Check Valves - TC Series
Subtype	Check Valves
Type	Thermoplastic Valves
