TC30100SE | 1" PP True Union Ball Check Valves w/EPDM o-rings; IPS socket fusion end connections | Hayward

Brand: HaywardSKU: TC30100SE

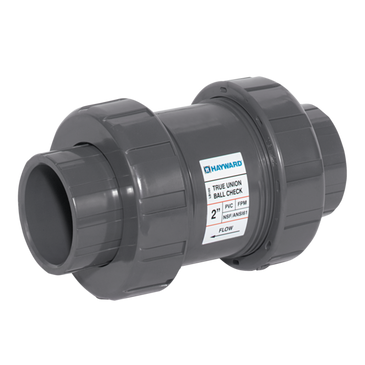

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TC30100SE

Jump to: Overview & Specifications Reviews

Overview Details for TC30100SE

1" PP True Union Ball Check Valves w/EPDM o-rings; IPS socket fusion end connections

TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and PP
• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	TC30100SE
Brand	Hayward
Category	Thermoplastic Valves
Class	TC Series True Union Check Valves
Cv Coefficient	11.0000
End Connection Type	Socket/Fusion
Material	PP
Pipe Size	1 in
Pressure Rating	235 PSI
Sealing Material	EPDM
Series	TC Series True Union Ball Check Valves
Spring Material	N/A
Sub Category	Check Valves
Subtype	Check Valves
Type	Thermoplastic Valves
