Documents: TC1400S

Datasheet More Info

TC1400S | 4" PVC True Union Ball Check Valves w/FPM o-rings; socket end connections | Hayward

Brand: HaywardSKU: TC1400S

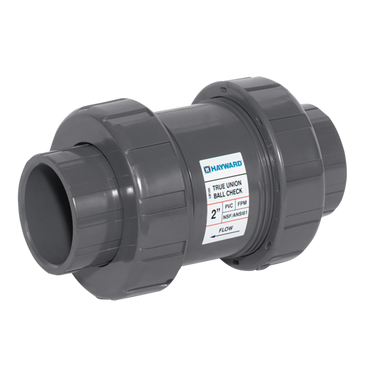

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TC1400S

Jump to: Overview & Specifications Reviews

Overview Details for TC1400S

4" PVC True Union Ball Check Valves w/FPM o-rings; socket end connections

TC Series true union ball check valves are offered in PVC, CPVC, and PP. O-rings and seats are FPM or EPDM. 1/4 in. and 3/8 in. sizes are PVC only and are trim check design. They have socket or threaded end connections. Others up to 2 in. sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and PP
• For Horizontal or Vertical Installation
• 1/2" to 6" are Sure Block Design
• Square Cut Seat for Positive Sealing
• Seats with Minimum Back Pressure
• 1/4" and 3/8" are Trim Check Design
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	TC1400S
Brand	Hayward
A	12.35 in
B	4.00 in
Body Material	PVC
C	8.56 in
Category	Check Valves
Category	Thermoplastic Valves
Class	TC Series True Union Check Valves
Cv Coefficient	400.0000
Cv Factor	400.0
D	4.25 in
End Connection Type	Socket
End Connection	Socket
Material	PVC
Pipe Size	4 in
Pressure Rating	150 PSI
Sealing Material	FPM
Seals	FPM
Series	TC Series True Union Ball Check Valves
Size	4"
Spring Material	N/A
Sub Category	Check Valves
SubCategory	True Union Ball Check Valves - TC Series
Subtype	Check Valves
Type	Thermoplastic Valves
