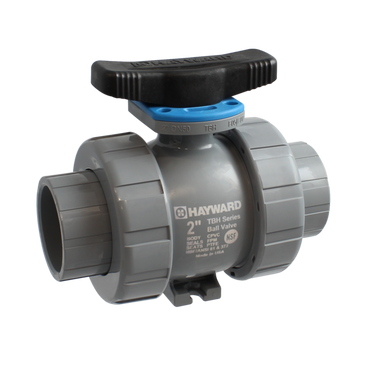

4" PVC TBH Series Ball Valve, SOC FPM Seals, Z Ball, Actuation Ready
The TBH-Z Series (Z-Ball) true union ball valves have a drilled ball to vent gases for sodium hypochlorite service. Available in PVC or CPVC materials with FPM O-rings only and PTFE seats. Sizes ½”/DN15 to 6” DN150. All valves are assembled with silicone free lubricant. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes. Fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock up to 2”/DN50; sizes 2-1/2” / DN65 – 4” / DN100 are pressure rated for 235psi/PN16 at 70°F non-shock. The TBH-Z is available with IPS, DIN/EN or JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.
• Integral ISO 5211 Mounting Pad for Easy Actuation• Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
• Permanent Laser Markings, Eliminates Labels
• System friendly "Molded-In" Footpad for Skid or Panel Mount
• UV Resistant Sure Grip Ergonomic Handle
• FPM or EPDM Seals
• Double O-Ring Stem Seals
• Reversible PTFE Seats - Standard
• Easy Replacement for Existing Hayward TB-Z Series
Specifications
| Item Number | TBH1400A0SVKZ00 |
| Brand | Hayward |
| Body Material | PVC |
| Category | Thermoplastic Valves |
| Category | True Union Ball Valves |
| Chassis Description | Large Diameter Body |
| Class | TBH Series True Union Ball Valves |
| Cv Coefficient | 600 |
| Cv Coefficient | 600.0000 |
| End Connection Material | PVC |
| End Connection Type | Socket |
| End Connection | Socket |
| Flow Configuration | Bi-directional |
| Material | PVC |
| O-Ring Material | FPM |
| Operating Pressure [Max] | 16 bar 235 psi |
| Operation Type | Actuation Ready |
| Pipe Size | 4 in |
| Pressure Rating | 235 PSI |
| Sealing Material | FPM |
| Seat Material | PTFE |
| Series | TBH Series With Z Ball True Union Ball Valves |
| Series | TBH-Z |
| Size | 4" |
| Sub Category | Ball Valves |
| SubCategory | TBH-Z Series "Z-Ball" |
| Subtype | Ball Valves |
| Subtype | Industrial Ball Valves |
| Type | Thermoplastic Valves |
| Valve Material | PVC |
| Valve Type | Ball |
