TBH1250A0SE0000 | 2-1/2" PVC TBH Series Ball Valve, SOC Ends, EPDM Seals | Hayward

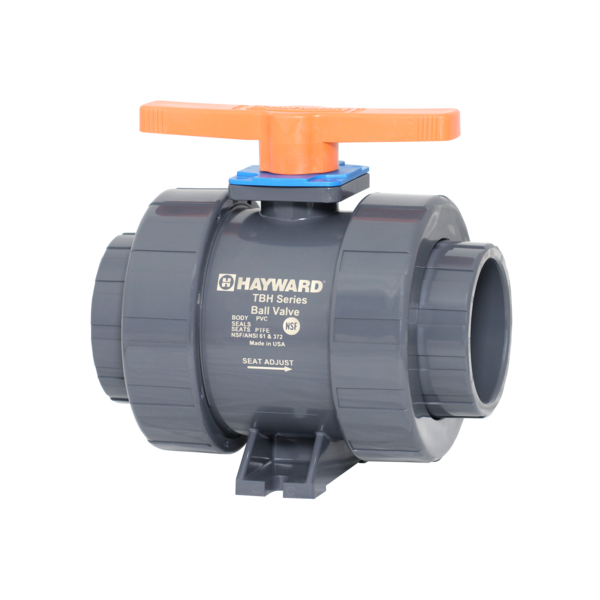

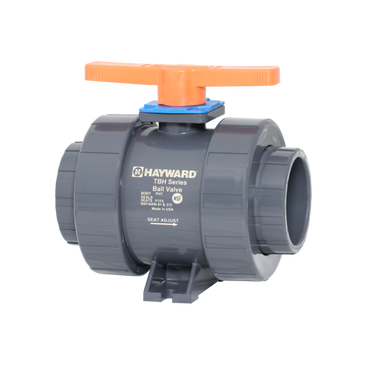

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBH1250A0SE0000

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward TBH1250A0SE0000 Documents

Datasheet More Info

Overview

Details for TBH1250A0SE0000

2-1/2" PVC TBH Series Ball Valve, SOC Ends, EPDM Seals

TB Series True Union Ball Valves now in PVDF.

• Available in sizes 1/4”-2”
• Threaded or Socket Fusion (IPS) Ends
• Full Port Design
• FPM O-Ring Seals Standard, EPDM upon request
• Reversible PTFE Seats
• Double O-Ring Stem Seals
• Available with Electric or Pneumatic Actuation

Specifications

Item Number	TBH1250A0SE0000
Brand	Hayward
Body Material	PVC
Category	Thermoplastic Valves
Category	True Union Ball Valves
Chassis Description	Large Diameter Body
Class	TBH Series True Union Ball Valves
Cv Coefficient	340
Cv Coefficient	340.0000
End Connection Material	PVC
End Connection Type	Socket
End Connection	Socket
Flow Configuration	Bi-directional
Handle Material	GFPP
Material	PVC
O-Ring Material	EPDM
Operating Pressure [Max]	16 bar 235 psi
Operation Type	Manual
Pipe Size	2-1/2 in
Pressure Rating	235 PSI
Sealing Material	EPDM
Seat Material	PTFE
Series	TBH
Size	2-1/2"
SubCategory	TBH Series Ball Valves
Subtype	Industrial Ball Valves
Suby Category	Ball Valves
Valve Material	PVC
Valve Type	Ball
